Re-VapTM Resistive Evaporation Sources
Re-VapTM resistive evaporation sources are the ideal platform for your thermal evaporation tool. Stable temperatures up to 1,800C can be routinely reached with our selection of matched elements. These complete source kits come with everything you need to install into your system. Add a MeiVac matched power supply to complete your coating process.
DATASHEET

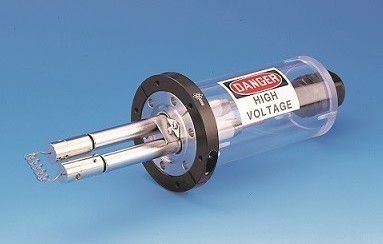

Re-VapTM 900W Resistive Evaporation Source
Part Number
Description
Specifications
0413-5004-1000
900 Watt resistive evaporation source. Assembly includes universal clamp holder that accepts filament, boat and basket elements. Mounted on a 2.75" CF type flange with shielding. Includes one tungsten filament coil (installed).

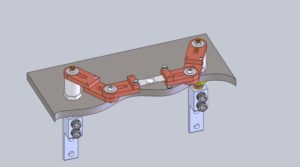

Re-VapTM 3kW Resistive Evaporation Source
Part Number
Description
Specifications
0414-7502-0
3 kW (600 Ampere) resistive evaporation source kit. Assembly includes high current feedthroughs, high current Z-Bar set, rigid clamp set and airside power connectors. Z-Bar system allows easy adjustment for all boat and filament types with various element lengths.
