MeiVac MAK Sputter Deposition Components

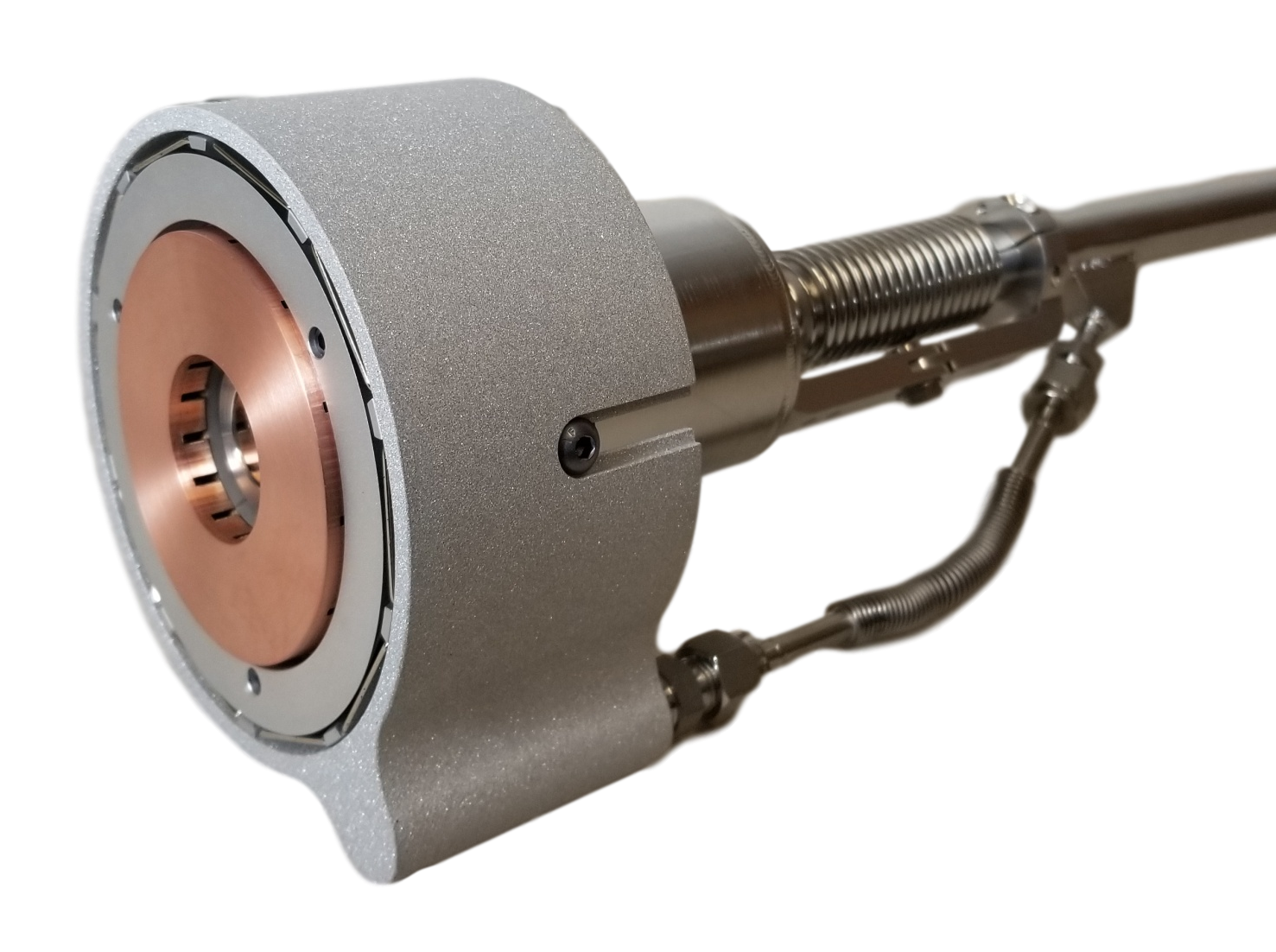

MeiVac is a leading manufacturer of planar magnetron sputter cathodes. Noted for its simplicity, ease of use, and resulting high reliability, the MAK sputter source has been designed to present the smallest profile possible and deliver higher deposition rates than any comparable sputter sources. MeiVac thin film sputter deposition products are the right choice for your process with a full range of standard and custom configurations.
BROCHURE
You may also be interested in:

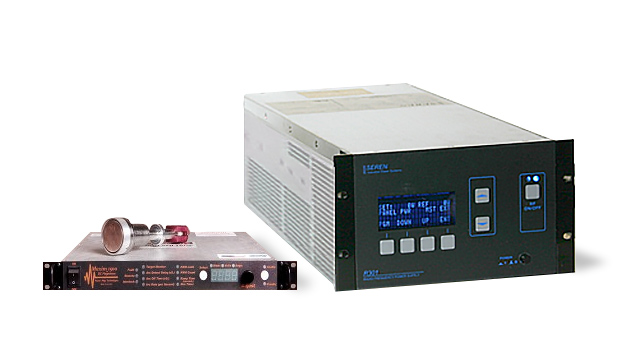

DC & RF Power Supplies for MAK Sputter Sources Recommended Target Suppliers Recommended System Integrators
Select a MAK Sputter Deposition Cathode Matching Your Requirements
Select Configuration Filters
Target Diameter
Mount Type
| Image | Part No | Target Diameter | Mount | Specification |
|---|---|---|---|---|
 | L130A01CF | 1.3" (33.0mm) | flange | View Details |
| L130A01FM | 1.3" (33.0mm) | flexmount | View Details |
| L130A01H | 1.3" (33.0mm) | horizontal | View Details |
| L130A01 | 1.3" (33.0mm) | vertical | View Details |
 | L200A01CF | 2.0" (50.4mm) | flange | View Details |
 | L200A01FM | 2.0" (50.4mm) | flexmount | View Details |
 | L200A01H | 2.0" (50.4mm) | horizontal | View Details |
 | L200A01 | 2.0" (50.4mm) | vertical | View Details |
| L300A01CF | 3.0" (76.2mm) | flange | View Details |
| L300A01FM | 3.0" (76.2mm) | flexmount | View Details |
| L300A01H | 3.0" (76.2mm) | horizontal | View Details |
| L300A01 | 3.0" (76.2mm) | vertical | View Details |
| L400A01CF | 4.0" (100.8mm) | flange | View Details |
| L400A01FM | 4.0" (100.8mm) | flexmount | View Details |
| L400A01H | 4.0" (100.8mm) | horizontal | View Details |
| L400A01 | 4.0" (100.8mm) | vertical | View Details |
| L600A01CF | 6.0" (152.4mm) | flange | View Details |
| L600A01FM | 6.0" (152.4mm) | flexmount | View Details |
| L600A01H | 6.0" (152.4mm) | horizontal | View Details |
| L600A01 | 6.0" (152.4mm) | vertical | View Details |
