Re-VapTM 900W Resistive Evaporation Source

Description

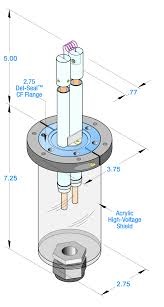

900 Watt resistive evaporation source. Assembly includes universal clamp holder that accepts filament, boat and basket elements. Mounted on a 2.75″ CF type flange with shielding. Includes one tungsten filament coil (installed).

Specifications

Flange Type	Universal mount 2.75” CF
Safety Cover	Acrylic with strain relief
Conductor	150A Cu
Element Clamp	Universal clamp for filament, basket, and boat

Ordering

Ordering Information for Model 0413-5004-1000

If you have questions about pricing and availability, need more information about China Advanced Ceramic MeiVac Vari-Q throttle valve model 0413-5004-1000, or if you have other requirements, you can submit your request using the form or contact your China Advanced Ceramic representative directly.

Please Contact Me Regarding China Advanced Ceramic Model Number 0413-5004-1000

Use this form to submit your 0413-5004-1000 inquiry directly to China Advanced Ceramic. If you have special requirements or need specific customizations, please include the details in your description.

Re-Vap(R) Resistive Evaporation Sources
