Description

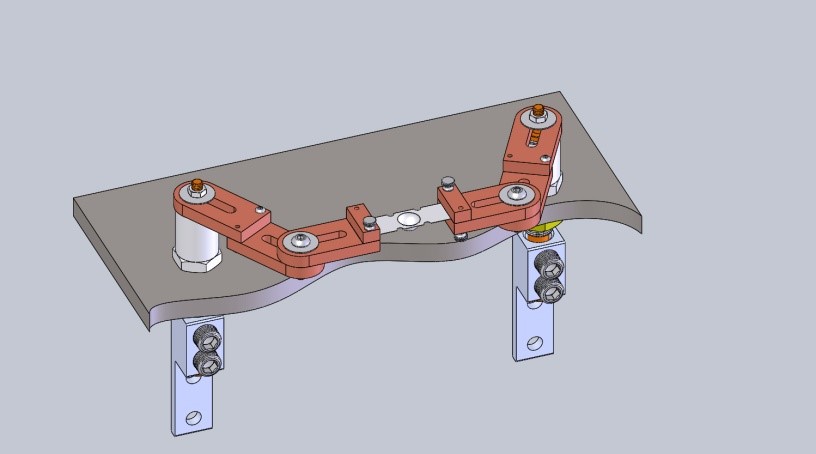

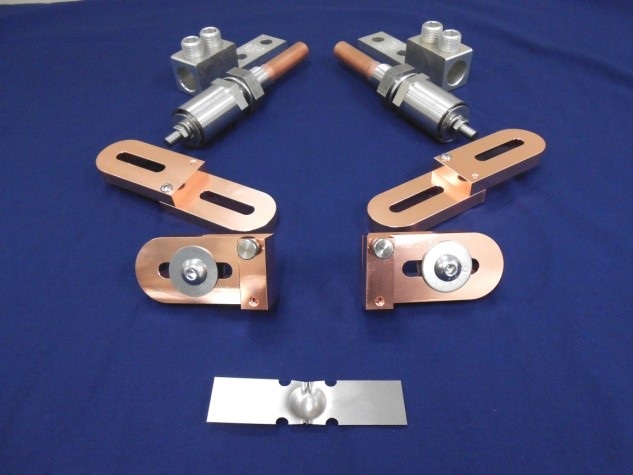

3 kW (600 Ampere) resistive evaporation source kit. Assembly includes high current feedthroughs, high current Z-Bar set, rigid clamp set and airside power connectors. Z-Bar system allows easy adjustment for all boat and filament types with various element lengths.
Specifications
| Flange Type | Standard 1” Dia. Bolt Feedthrough |
|---|---|
| Element Clamp | Universal clamp for all standard element types: filament, basket, boat, baffle box |
| Optional Flange Type | KF or CF |
| Z-bar | Allows full range adjustment for feedthrough location and height |
