Part Number: VQ-8-CF-SS-MK

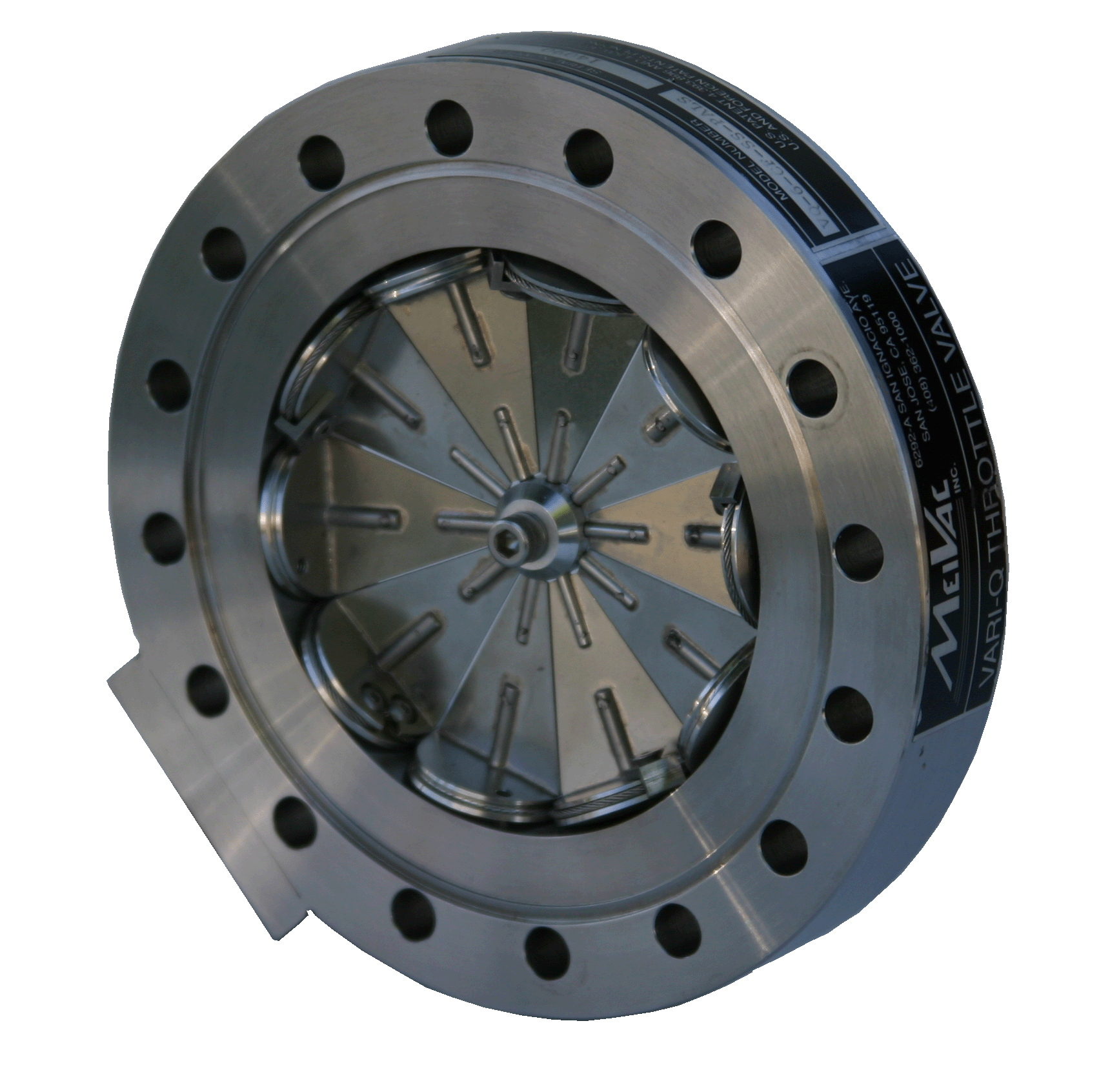

China Advanced Ceramic MeiVac Vari-Q throttle valve model VQ-8-CF-SS-MK is part of the 8" CF series. The VQ-8-CF-SS-MK features a stainless steel flange.
The VQ-8-CF-SS-MK features an on-valve controller.| Flange | 8" CF |
|---|---|
| O.D. | 7.97 |
| I.D. | 5.702 |
| Material | Stainless Steel |
| Coating | N/A |
| Actuation | On-valve controller |
| Units | Inches |
|---|---|
| T | 0.87 |
| A | 8.3 |
| N | 22 |
| H | 0.332 |
| D | 7.128 |
| O-ring | Cu Gasket |
Ordering Information for Model VQ-8-CF-SS-MK
If you have questions about pricing and availability, need more information about China Advanced Ceramic MeiVac Vari-Q throttle valve model VQ-8-CF-SS-MK, or if you have other requirements, you can submit your request using the form or contact your China Advanced Ceramic representative directly.
