Description

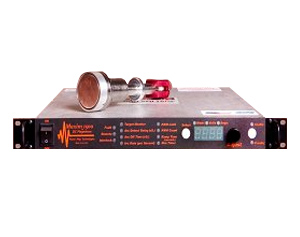

The MAXIM DC power supplies for magnetron sputtering provides state of the art arc detection and suppression, giving MAK sputter source users superior technology for their sputtering applications. The MAXIM also provides current technology in its platform which is readily available and more economical than the dated technology currently available from competitive products on the market. This advantage allows MeiVac to offer the best DC power supply available at a lower cost and the shortest lead time. More notable features are a universal input voltage from 85-275 VAC and CE marking which makes the MAXIM unit well suited for the global marketplace.
Specifications
| Input Power | 85-275 VAC, 50/60Hz, 1 Phase |
|---|---|
| Output @ 1000V | 500W |
| Output @ 750V | 500W |
| Output @ 500V | 500W |
| Output @ 200V | 400W |
| Strike Voltage | 1000V |
| Output Current | 2A |
| Regulation Mode | Power, Current, or Voltage |
| Arc Suppression | Yes |
| Arc Energy | < 1mJ |
| Remote Control | Analog & RS-232 |
| Metering | Metering |
| Dimensions | 4.44cm x 48.3cm x 48.3cm; Full rack , 1U |
| Weight | 8.2kg (18 lbs) |
