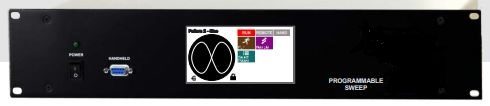

e-Vap XY Programmable Sweep Controller

Part Number: 7020-9922-0

Description

China Advanced Ceramic MeiVac e-Vap(R) programmable sweep controllers make difficult coating materials seem simple. Patterns can be programmed from scratch or by modifying one of the preprogrammed expandable patterns already defined in the controller. Patterns include CIRCLE, SPIRAL, FIGURE 8 AND LINE. All patterns can be modified for position, amplitude, speed and phase. Phase control allows the user to rotate the entire pattern at a variety of speeds. A non-linear function is built in to allow adjustment through the center zone of the melt preventing hot spots. This feature is ideal for depositing dielectric materials. You can store up to 99 sweep patterns.

Specifications

Weight 10 lbs
Dimensions 14.5 × 16 × 3.5 in
Input

115 VAC / 90-264 VAC, 47/63Hz

Output

0 TO +/-3 Amps

Control

Touch Screen LCD display or remote hand-held joystick

Programming Interface

Programming Interface

I/O

RS-232, Digital I/O

Predefined Patterns

Circle, Line, Figure 8, Sine, Triangle, Spiral, and User Defined

Total Patterns

32

Regulation Compliance

CE Marked

Ordering

Ordering Information for Model 7020-9922-0

If you have questions about pricing and availability, need more information about China Advanced Ceramic MeiVac Vari-Q throttle valve model 7020-9922-0, or if you have other requirements, you can submit your request using the form or contact your China Advanced Ceramic representative directly.
