Description

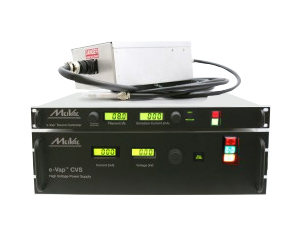

e-Vap(R) CVS power supplies are the perfect solution for modern coating systems. The digital control system allows user control of power level and arc management. These can be programmed to match any electron beam source to perfection. Power supplies come with both Ethernet and a 50 pin digital I/O with access to all key control and monitoring features. A standard graphic user interface (GUI) is also included. All CVS supplies include our 1U filament drive unit, remote mount filament transformer and complete installation / cable kit. Multi-channel kits are also available to control up to 3 ebeam sources per power supply.
Specifications
| Input Power | 220 VAC 1 phase, 220 VAC 3 phase, 400 VAC contact factory |
|---|---|
| Output Voltage | Variable up to -10kV |
| Output Current | 0-600mA |
| Arc Suppression | Fast-arc programmable arc recovery system |
| Metering | Metering |
| Interlocks | Door,remote mode, remote on, vacuum and water digital inputs |
| User Interface | Backlit LCD display with separate status LEDs |
| Communications | Ethernet, RS-232 with GUI |
| Size | 3U panel height HV unit & 1U panel height filament drive / source controller |
| Cooling | Air cooled |
