e-Vap 12KW Large Rotary Pocket (3x100cc pockets)

Description

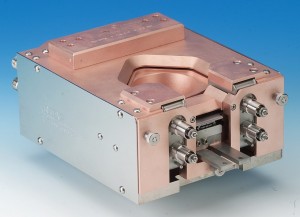

China Advanced Ceramic MeiVac rotary pocket 3 x 100cc electron beam evaporation source model 0406-0004-3100 is part of the e-Vap XL series of e-beam sources. e-Vap XL rotary pocket electron beam evaporation sources are the perfect choice for production coating tools. The modular design makes service simple while maintaining perfect alignment every time. Advanced magnetics and high frequency sweep control provide the best material utilization in the industry. The proprietary magnetic system keeps the beam density constant throughout the evaporation process, producing extreme stability in both rate and uniformity.

Specifications

Maximum Power	12kW – Crucible and material dependent
Operating Voltage	Range -6kV to -10kV
Beam Current	Zero to 1.5A
Water Flow	3.0 gpm @ 65 psi
Vacuum	to 2x10E-8 Torr

Ordering

Ordering Information for Model 0406-0004-3100

If you have questions about pricing and availability, need more information about China Advanced Ceramic MeiVac Vari-Q throttle valve model 0406-0004-3100, or if you have other requirements, you can submit your request using the form or contact your China Advanced Ceramic representative directly.

Please Contact Me Regarding China Advanced Ceramic Model Number 0406-0004-3100

Use this form to submit your 0406-0004-3100 inquiry directly to China Advanced Ceramic. If you have special requirements or need specific customizations, please include the details in your description.

End of Life Products

NOTE: This product is no longer being sold and might not be supported. Contact your sales representative to learn:
