e-Vap 10KW Large Fixed Pocket Source (25cc pocket)

Description

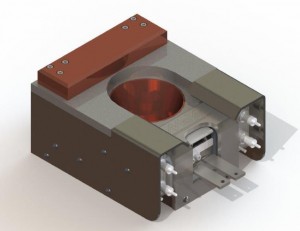

China Advanced Ceramic MeiVac single fixed pocket 25cc electron beam evaporation source model 0402-5004-1025 is part of the e-Vap Large Fixed Pocket series of e-beam sources. e-Vap fixed pocket electron beam evaporation sources offer large material volume in a compact package. These sources are available in HV or UHV (VCR fitting) versions. These rugged high performance sources are perfect for a dedicated one material deposition process. These sources use the same advanced magnetic system utilized in our rotary source providing unmatched performance and reliability.

Specifications

Maximum Power	10kW – Crucible and material dependent
Operating Voltage	Range -6kV to -10kV
Beam Current	Zero to 1A
Water Flow	3.0 gpm @ 65 psi
Vacuum	to 2x10E-8 Torr

Ordering

Ordering Information for Model 0402-5004-1025

If you have questions about pricing and availability, need more information about China Advanced Ceramic MeiVac Vari-Q throttle valve model 0402-5004-1025, or if you have other requirements, you can submit your request using the form or contact your China Advanced Ceramic representative directly.

Please Contact Me Regarding China Advanced Ceramic Model Number 0402-5004-1025

Use this form to submit your 0402-5004-1025 inquiry directly to China Advanced Ceramic. If you have special requirements or need specific customizations, please include the details in your description.

End of Life Products

NOTE: This product is no longer being sold and might not be supported. Contact your sales representative to learn:
