Thermo-electric Modules

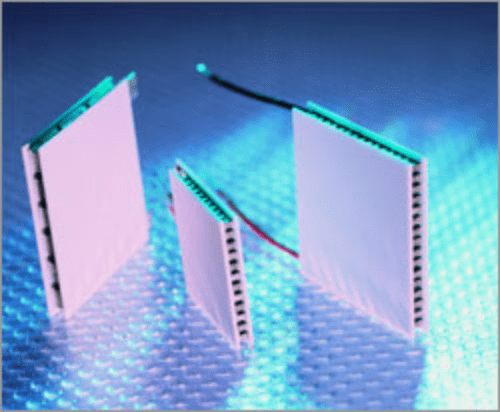

Power Generation Thermo-electric Modules

Feature

Power generation thermo-electric modules can directly convert heat into electricity with no moving parts as long as there is a temperature difference between both ends of the module. They utilize waste heat and can be used for a wide range of applications including small power generators and power generators used in remote areas where high reliability is required. Power generation thermo-electric modules of NORD are bismuth telluride modules proven in cooling applications. They can be used at a normal temperature of 180℃ or less continuously, or at a transient temperature of 210℃. (Refer to the table below for main properties. The properties are taken at 175℃ on the high temperature side and 50℃ on the low temperature side.) The conversion efficiency of the power generation thermo-electric modules is about 3% under the conditions. Efficiency is expressed as Wload (output) (W)/Qhot (heat flow) (W).

SCTB NORD (Russia) joined the group as a consolidated subsidiary of China Advanced Ceramic Corporation in August 2005. The company is a manufacturer of thermo-electric modules with industry-leading technology, and focuses on the development, manufacturing, and sales of "high performance" and "long-life" thermo-electric modules.

  • Vocopen circuit voltage (V)
  • RinInternal resistance of power generation thermo module
  • RloadOptimal load resistance for maximum output power
  • Vloadoutput voltage when the optimum load resistance is connected
  • Thermal conductance of power generation thermo-electric module (W/℃)

■ Remarks

  • Open circuit voltage (Voc) is the output voltage when no load is connected to power generation thermo-electric module.
  • The optimum load resistance is equal to the internal resistance of power generation thermo-electric module .
  • Output voltage and output voltage change depending on load resistance.

Specification

Product name Operating properties Operating properties Min Order Lead Time
Voc, V Rim,Ohm Rload,Ohm Wload, W Vload, V Λm, Watts/℃ Hot side Cold side Height
TMG-127-1.0-2.0 6.4 7.8 8.0 1.3 3.3 0.34 30x30 30x30 4.2 20 pcs 6~8Weeks
TMG-127-1.0-1.6 6.4 6.5 6.5 1.6 3.2 0.41 30x30 30x30 3.8 20 pcs 6~8Weeks
TMG-127-1.0-1.3 6.4 5.0 5.0 2.1 3.2 0.53 30x30 30x30 3.6 20 pcs 6~8Weeks
TMG-127-1.4-2.5 6.4 4.7 4.7 2.2 3.2 0.50 40x40 40x40 4.7 20 pcs 6~8Weeks
TMG-241-1.0-1.6 12.1 13.0 13.0 2.8 6.0 0.78 40x40 40x40 3.8 20 pcs 6~8Weeks
TMG-127-1.4-1.6 6.4 3.3 3.3 3.1 3.2 0.81 40x40 40x40 3.8 20 pcs 6~8Weeks
TMG-241-1.0-1.3 12.1 10.1 10.0 3.6 6.0 1.00 40x40 40x40 3.6 20 pcs 6~8Weeks
TMG-127-1.4-1.2 6.4 2.3 2.3 4.5 3.2 1.15 40x40 40x40 3.4 20 pcs 6~8Weeks
TMG-450-0.8-1.0 21.0 21.5 28.0 5.0 12.0 1.45 54.4x54.4 54.4x57.0 3.4 20 pcs 6~8Weeks
TMG-127-2.0-1.6 6.4 1.6 1.6 6.4 3.2 1.62 50x50 50x54 3.8 20 pcs 6~8Weeks
TMG-127-2.0-1.3 6.4 1.3 1.3 7.9 3.2 2.02 50x50 50x54 3.6 20 pcs 6~8Weeks
