Ultimate Uniformity in Lift-Off Processes, Optimized for 150mm Wafers

The Temescal UEFC-4900 with Auratus is the compact version of the UEFC-5700. It represents the ultimate mid-sized coater for lift-off processes. The source-to-substrate distance and chamber angles in the UEFC-4900 have been optimized for 150mm wafers and the system supports 25 x 150mm wafers.

The load locked product chamber is pumped by a CTI model CT-500 cryogenic pump. Powerful cryopumps make it possible to pump this large chamber in 15 minutes from atmosphere to pressures in the range of 10E-7. During wafer exchanges, the source chamber is maintained at high vacuum by the independent pumping of a dedicated 10-inch cryopump.

Key features:

  • Large capacity: 25 x 150mm
  • 40% more wafers with no increase in footprint or power consumption
  • Less than 15 minutes to 5E-07 Torr
  • 36,500 L/sec pumping
  • Significantly less surface area and volume

System

  • Ultimate Uniformity Production: 150mm
  • Product Chamber Type: conic
  • Load Lock to isolate Product Chamber
  • Cryopump water L/sec: 36,500
  • Pump down time: 1E-06 < 10mins
  • E-gun (max pkg): 2 6x25cc PopTops + 1 fixed pocket
  • E-gun Power Supply: 6, 12, or 15 kW
  • Ion gun: MKII HC
  • Max wafer count: Lift off 25x150mm
  • Source to Substrate: std 35.5”

System Control

  • Temescal Control System (TCS), with Auto, Manual modes plus process datalogging
  • Security code-based access for multiple classes of users
  • TCS-based process variable monitoring (PVM), allowing user to set tolerance alarms for critical process variables
  • 17″ high resolution color touch screen interface

E-Beam

  • Temescal 4- or 6-pocket Standard or PopTop turret source
  • Temescal model CV-6SLX or CV-12SLX e-beam power supply (Simba option available)
  • TemEBeam Contoller: Sweep, Index, Gun & HV

Substrate

  • HULA: High Uniformity Lift-off Assembly
  • Lift-off dome or dome frame with segments
  • Flip tooling: allows for two sided or edge coating
  • VAP: Variable Angle Planetary

Vacuum Pumping & Control

  • Market leading dry roughing pump >60 cfm (102 m3/h)
  • CTI On-Board Cryopumps
  • Cryopump temperature monitoring
  • Active Inverted Magnetron gauges and Pirani controllers, monitored and controlled by the TCS

Product Chamber

  • Dimensions in inches: 49 conic
  • Product chamber cryopump: CT-500 30,000 L/Sec
  • Water cooled product chamber walls
  • Two sets of product chamber evaporation shields
  • Wide-angle viewport on front of system
  • Maskless uniformity
  • Spare port(s) for RGA or alternate access
  • 10” and 12.75” diameter side ports for optional components

Source Chamber

  • Source-isolation valve allows product chamber access while source chamber remains under vacuum
  • Source chamber cryopump: CT-10 9,000 L/Sec
  • Source Tray Dimensions in inches: 20
  • Drop-down, swing-out source tray, accessible from either clean room or chase side of vacuum cubicle
  • Wide-angle 4” viewport
  • Removable stainless-steel source shields

Water & Air System

  • Stainless steel manifold provides cooling water for source and product chamber components
  • Separate product chamber circuit for cold and optional hot water
  • TCS-controlled auto-blowdown for turret source
  • PLC-controlled air manifold

System Wide

  • 3 EMO switches
  • Standard 19” wide electronics rack on casters
  • Surfaces exposed to high vacuum are made of 304 SST
  •

Temescal Control System

The Temescal Control System (TCS) provides fully integrated, recipe-driven process and vacuum control. Operating in any of three password-protected modes, the TCS also offers process variable monitoring, process and historical trend tracking, and process data logging.

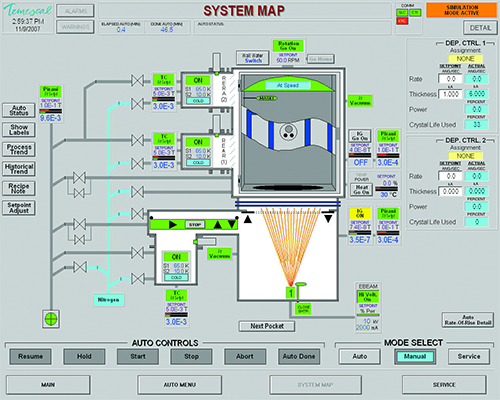

TCS System Map During Deposition



The TCS Automatic Mode

Auto Mode operation provides fully automated execution of user-programmed recipes consisting of up to twenty process steps, as well as full abort diagnostics. The TCS Auto Mode also offers independent autopump and autovent operations, automated cryopump regeneration, and automated rate-of-rise testing.

Manual Mode Operation

The TCS Manual Mode enables the user to set process parameters, operate major components and subsystems individually with full interlock protection, and execute nonautomated single-film deposition processes.

Service Mode Operation

The TCS Service Mode provides noninterlocked low-level control over any of the system’s valves, pumps, motors, or power supplies.
