Feedthrough Model: USS-375-SLBE
Part Number: 150359
Product Description
China Advanced Ceramic Ferrofluidic seal Feedthrough Model USS-375-SLBE (part number 150359) is a member of China Advanced Ceramic Nut-Mount Feedthroughs. The USS-375-SLBE vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The USS-375-SLBE vacuum rotary feedthrough features a Solid shaft with Nut Mounted (threaded body) mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

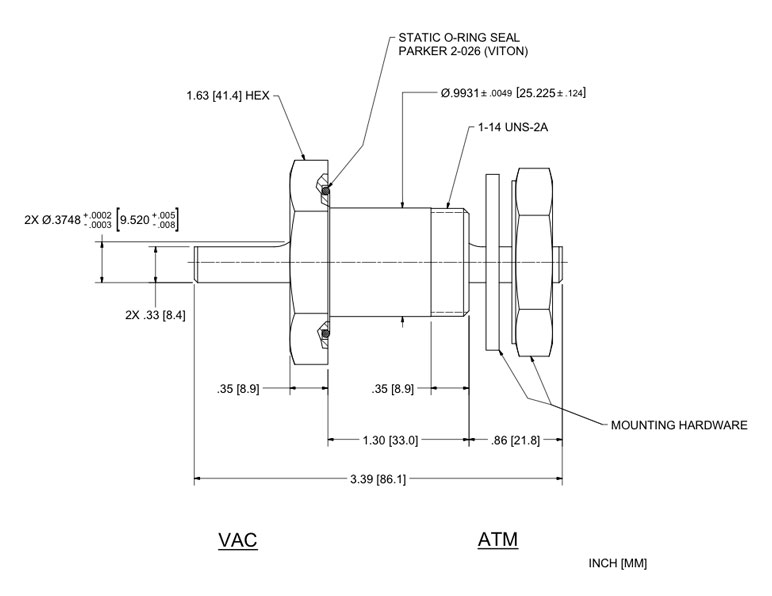

China Advanced Ceramic Part Number 150359 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 150359
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting |
Nut Mounted (threaded body) Mounting Nut and Washer Included |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.3747 in |
| Shaft termination | .040d x .86 (flat) in |
| Shaft extension (Vac) | 0.88 in |
| Overall length | 3.39 in |
| Housing overall length | 1.65 in |
| Housing diameter | 0.998 in |
| Body length | 1.3 in |
| Thread diameter | 0.998 in |
| Thread pitch [tps] or [mm/thd] (metric) | 14 [tps] |
| Thread length | 0.35 in |
| Flange diameter | 1.63 in |
| Flange thickness | 0.35 in |
| Flange wrench flat | 1.5 in |
| Flange Type | Nut mount |
| Face seal O-ring | 2-026 |
Bearing Specifications: |
|
| Bearing type/material | R6 |
| Bearing load cap | 305 Pounds |
| Bearing dynamic load capacity | 575 Pounds |
| Bearing Dim A | 1.05 in |
| Bearing Dim B | 0.97 in |
 |
|
Performance Characteristics: |
|
| Shaft Torque Capacity | 160 in-lb |
| Starting Torque 100rpm * | 4 in-oz |
| Running Torque 100rpm ** | 2.5 in-oz |
| Starting Torque 1000rpm * | 6 in-oz |
| Running Torque 1000rpm ** | 3 in-oz |
| Limiting Speed [rpm] | 10000 |
| Notes | NULL |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
