Feedthrough Model: USS-375-SFKB
Part Number: 134089



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model USS-375-SFKB (part number 134089) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The USS-375-SFKB vacuum rotary feedthrough uses China Advanced Ceramic fluorocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Reactive Gas environments.

The USS-375-SFKB vacuum rotary feedthrough features a Solid shaft with KF Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

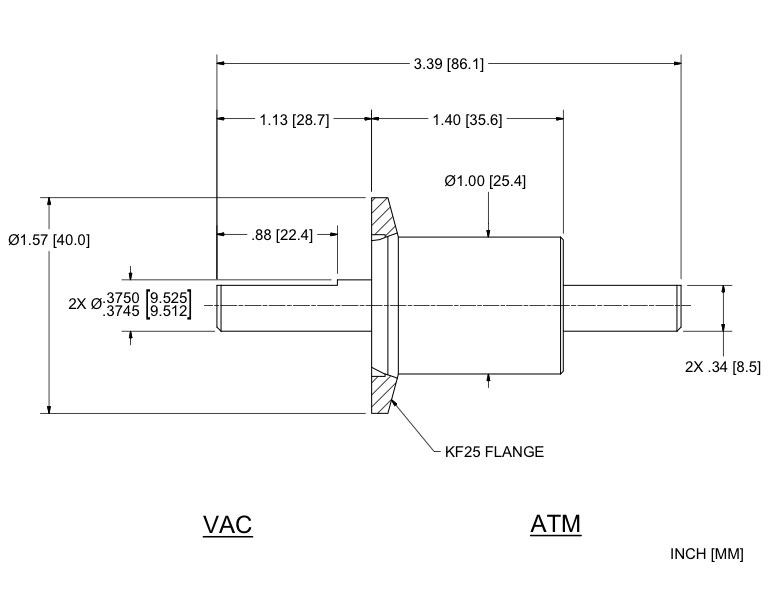

China Advanced Ceramic Part Number 134089 Dimension Specification Drawing

Feedthrough Model USS-375-SFKB (part number 134089) dimensional specifications drawing

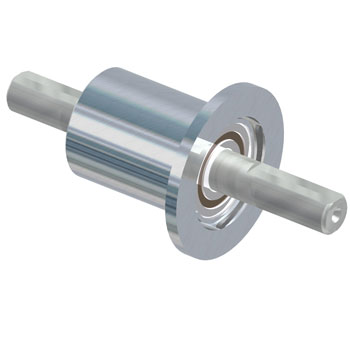

Feedthrough Model USS-375-SFKB (part number 134089) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 134089

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Reactive Gas
Mounting KF Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 0.3747  in
Shaft termination .040d x .88 (flat) in
Shaft extension (Vac) 1.13 in
Overall length 3.39 in
Housing overall length 1.4 in
Housing diameter 1  in
Body length 1.28 in
Flange diameter 1.575 in
Flange thickness 0.12 in
Flange Type KF Flange

Bearing Specifications:
Bearing type/material R6
Bearing load cap 305 Pounds
Bearing dynamic load capacity 575 Pounds
Bearing Dim A 1.36 in
Bearing Dim B 0.97 in
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 160 in-lb
Starting Torque 100rpm * 4 in-oz
Running Torque 100rpm ** 2.5 in-oz
Starting Torque 1000rpm * 6 in-oz
Running Torque 1000rpm ** 3 in-oz
Limiting Speed [rpm] 10000
Notes NULL
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model USS-375-SFKB, Part Number 134089

If you have questions about pricing and availability, need more information about China Advanced Ceramic USS-375-SFKB rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model USS-375-SFKB, Part Number 134089 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
