Feedthrough Model: HFL-075-NN
Part Number: 133623



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HFL-075-NN (part number 133623) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HFL-075-NN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The HFL-075-NN vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 133623 Dimension Specification Drawing

Feedthrough Model HFL-075-NN (part number 133623) dimensional specifications drawing

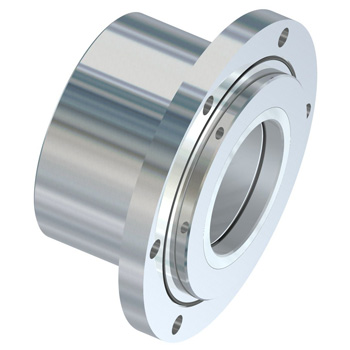

Feedthrough Model HFL-075-NN (part number 133623) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133623

Shaft Hollow Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 75 (+.025/-0) mm
Shaft extension (Vac) 10 mm
Overall length 92 mm
Housing overall length 67 mm
Housing diameter 126  mm
Body length 67 mm
Recommended shaft diameter 74.98
Recommended mounting bore 126 (+.02/0) mm
Flange diameter 180 mm
Flange thickness 15 mm
Mounting holes 11.0, 6x on 160.0 bc mm
Flange Type Flange

Bearing Specifications:
Bearing type/material 6818
Bearing Dim A 16.5 mm
Bearing Dim B 64 mm
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 2550 N-mm
Running Torque 100rpm ** 1510 N-mm
Starting Torque 1000rpm * 4640 N-mm
Running Torque 1000rpm ** 2320 N-mm
Limiting Speed [rpm] 935
Notes flange geometry can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model HFL-075-NN, Part Number 133623
