Feedthrough Model: HFL-012-NN
Part Number: 133607



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HFL-012-NN (part number 133607) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HFL-012-NN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The HFL-012-NN vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

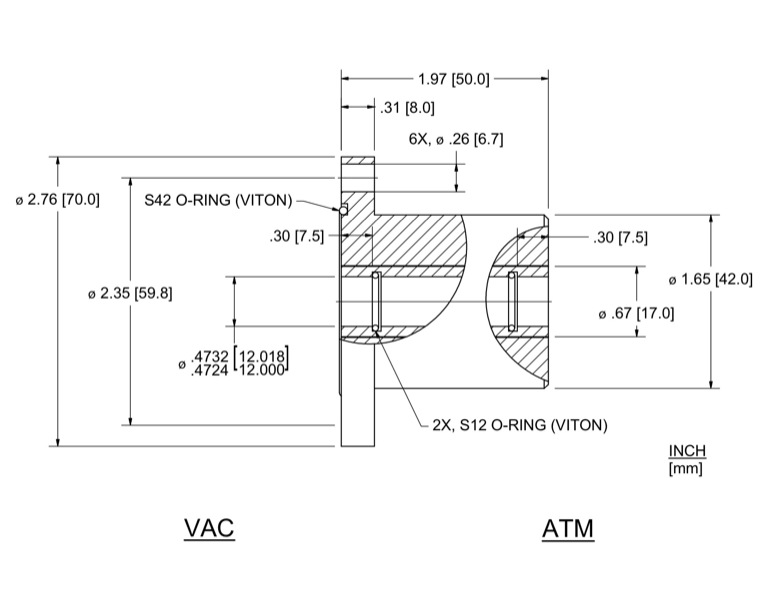

China Advanced Ceramic Part Number 133607 Dimension Specification Drawing

Feedthrough Model HFL-012-NN (part number 133607) dimensional specifications drawing

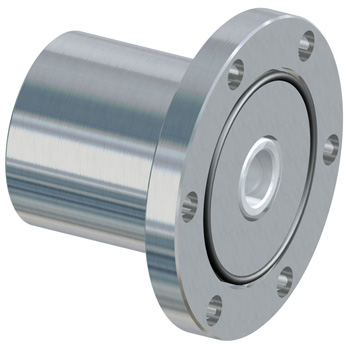

Feedthrough Model HFL-012-NN (part number 133607) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133607

Shaft Hollow Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 12 (+.018/-0) mm
Overall length 50 mm
Housing overall length 42 mm
Housing diameter 42  mm
Body length 42 mm
Recommended shaft diameter 11.98
Flange diameter 70 mm
Flange thickness 8 mm
Mounting holes 6.7, 6x on 59.80 bc mm
Flange Type Flange

Bearing Specifications:
Bearing type/material 16003
Bearing Dim A 9.2 mm
Bearing Dim B 31.5 mm
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 36.79 N-mm
Running Torque 100rpm ** 21.75 N-mm
Starting Torque 1000rpm * 66.87 N-mm
Running Torque 1000rpm ** 33.40 N-mm
Limiting Speed [rpm] 8625
Notes flange geometry can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model HFL-012-NN, Part Number 133607
