Feedthrough Model: SSL-006-NN
Part Number: 133602



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SSL-006-NN (part number 133602) is a member of China Advanced Ceramic Thread Mounted Feedthroughs. The SSL-006-NN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SSL-006-NN vacuum rotary feedthrough features a Solid shaft with Nose (threaded) mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

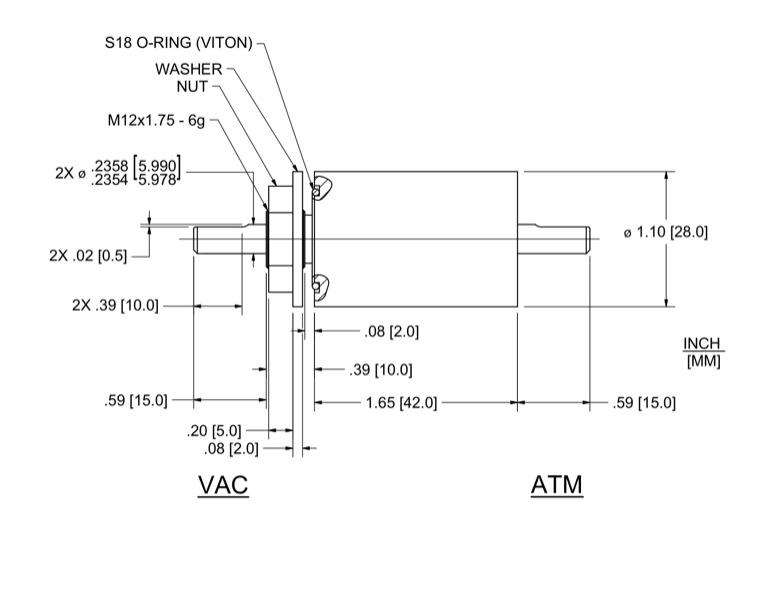

China Advanced Ceramic Part Number 133602 Dimension Specification Drawing

Feedthrough Model SSL-006-NN (part number 133602) dimensional specifications drawing

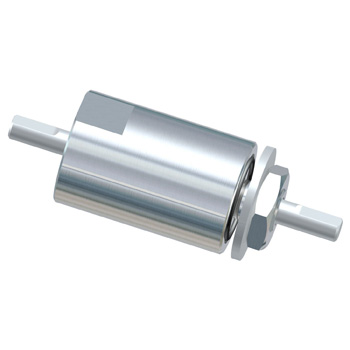

Feedthrough Model SSL-006-NN (part number 133602) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133602

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Nose (threaded)
Mounting Nut and Washer Included

Dimensions:
Shaft (or bore) Diameter with tolerance 6 (-0.010/-0.022) mm
Shaft termination 0.5 d x 10 L (flat) mm
Shaft extension (Vac) 15 mm
Overall length 82 mm
Housing overall length 52 mm
Housing diameter 28  mm
Body length 42 mm
Thread diameter 12 mm
Thread pitch [tps] or [mm/thd] (metric) 1.75 [mm/thd]
Thread length 8 mm
Recommended mounting bore 12.5

Bearing Specifications:
Bearing type/material 627
Bearing Dim A 32.5 mm
Bearing Dim B 28 mm
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 1.41 N-m
Starting Torque 100rpm * 1.06 N-mm
Running Torque 100rpm ** 0.64 N-mm
Starting Torque 1000rpm * 1.91 N-mm
Running Torque 1000rpm ** 0.99 N-mm
Limiting Speed [rpm] 10000
Notes shaft length can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SSL-006-NN, Part Number 133602
