Feedthrough Model: SSL-012-WN
Part Number: 133576



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SSL-012-WN (part number 133576) is a member of China Advanced Ceramic Thread Mounted Feedthroughs. The SSL-012-WN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SSL-012-WN vacuum rotary feedthrough features a Solid shaft with Nose (threaded) mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 133576 Dimension Specification Drawing

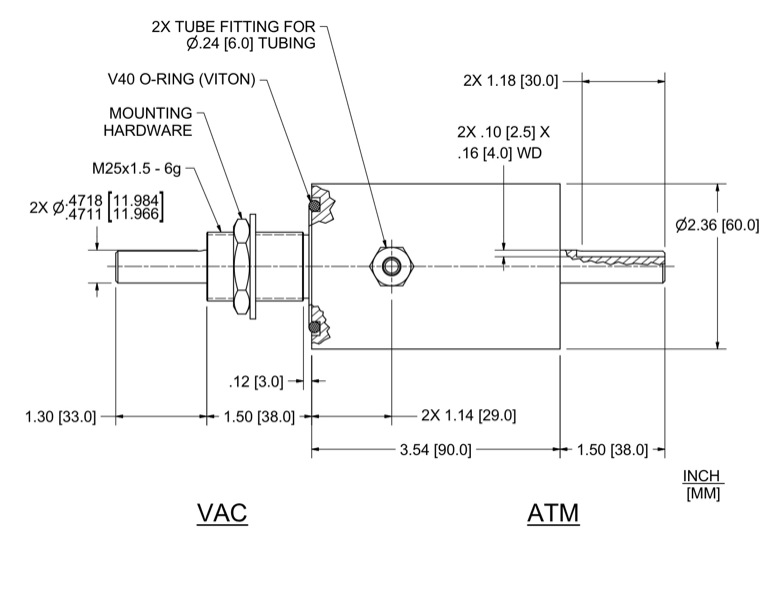

Feedthrough Model SSL-012-WN (part number 133576) dimensional specifications drawing

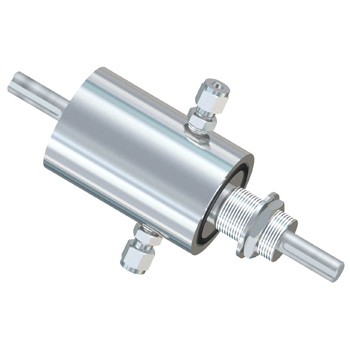

Feedthrough Model SSL-012-WN (part number 133576) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133576

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Nose (threaded)
Mounting Nut and Washer Included
Features: Water-cooled

Dimensions:
Shaft (or bore) Diameter with tolerance 12 (-.016/-0.034) mm
Shaft termination 4.0w x 2.5d x 30L keyway mm
Shaft extension (Vac) 71 mm
Overall length 199 mm
Housing overall length 90 mm
Housing diameter 60  mm
Body length 90 mm
Thread diameter 25 mm
Thread pitch [tps] or [mm/thd] (metric) 1.5 [mm/thd]
Thread length 35 mm
Recommended mounting bore 25.5
Fitting locations 29 mm
Flange Type Nose mount

Bearing Specifications:
Bearing type/material 6301
Bearing Dim A 82.9 mm
Bearing Dim B 67.7 mm
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 16.6 N-m
Starting Torque 100rpm * 8.4 N-mm
Running Torque 100rpm ** 5.01 N-mm
Starting Torque 1000rpm * 15.3 N-mm
Running Torque 1000rpm ** 7.63 N-mm
Limiting Speed [rpm] *** 10000
Notes shaft length can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

*** Water cooling may permit significantly higher speed. Consult your Field Engineer.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SSL-012-WN, Part Number 133576
