Feedthrough Model: SFL-030-NN
Part Number: 133570



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SFL-030-NN (part number 133570) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SFL-030-NN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SFL-030-NN vacuum rotary feedthrough features a Solid shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 133570 Dimension Specification Drawing

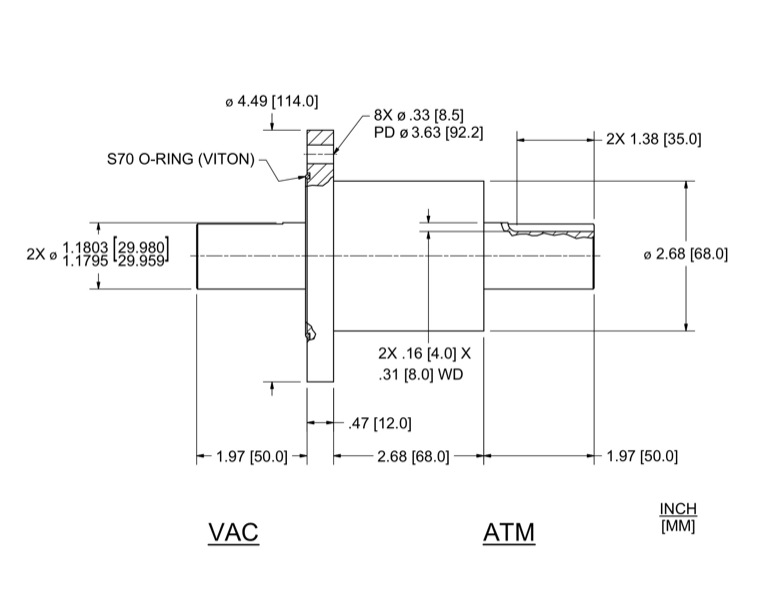

Feedthrough Model SFL-030-NN (part number 133570) dimensional specifications drawing

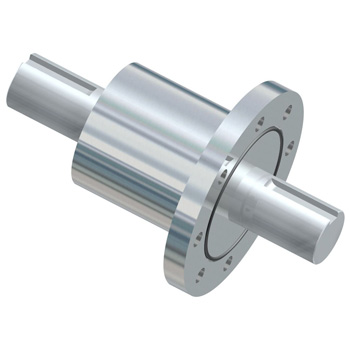

Feedthrough Model SFL-030-NN (part number 133570) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133570

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 30 (-0.020/-0.041) mm
Shaft termination 8.0 w x 4.0 d x 35 L (keyway) mm
Shaft extension (Vac) 50 mm
Overall length 180 mm
Housing overall length 80 mm
Housing diameter 68  mm
Body length 68 mm
Flange diameter 114 mm
Flange thickness 12 mm
Mounting holes 8.5, 8 x 92.2mm mm

Bearing Specifications:
Bearing type/material 6006
Bearing Dim A 65.5 mm
Bearing Dim B 54 mm
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 320 N-m
Starting Torque 100rpm * 132 N-mm
Running Torque 100rpm ** 77.8 N-mm
Starting Torque 1000rpm * 239 N-mm
Running Torque 1000rpm ** 120 N-mm
Limiting Speed [rpm] 4645
Notes shaft length and flange geometry can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SFL-030-NN, Part Number 133570
