Feedthrough Model: SFL-020-NN
Part Number: 133569



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SFL-020-NN (part number 133569) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SFL-020-NN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SFL-020-NN vacuum rotary feedthrough features a Solid shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

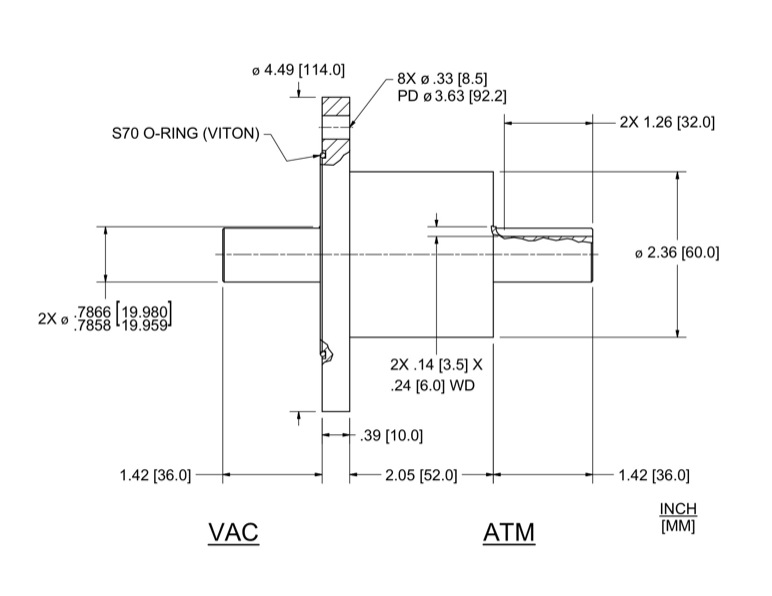

China Advanced Ceramic Part Number 133569 Dimension Specification Drawing

Feedthrough Model SFL-020-NN (part number 133569) dimensional specifications drawing

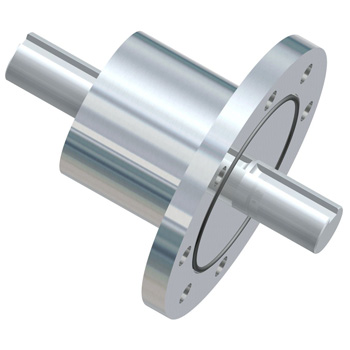

Feedthrough Model SFL-020-NN (part number 133569) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133569

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 20 (-0.020/-0.041) mm
Shaft termination 6.0 w x 3.5 d x 32 L (keyway) mm
Shaft extension (Vac) 36 mm
Overall length 134 mm
Housing overall length 62 mm
Housing diameter 60  mm
Body length 52 mm
Flange diameter 114 mm
Flange thickness 10 mm
Mounting holes 8.5, 8 x 92.2mm mm

Bearing Specifications:
Bearing type/material 6004
Bearing Dim A 51 mm
Bearing Dim B 37 mm
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 88.4 N-m
Starting Torque 100rpm * 39 N-mm
Running Torque 100rpm ** 23 N-mm
Starting Torque 1000rpm * 70.8 N-mm
Running Torque 1000rpm ** 35.4 N-mm
Limiting Speed [rpm] 8385
Notes shaft length and flange geometry can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SFL-020-NN, Part Number 133569

If you have questions about pricing and availability, need more information about China Advanced Ceramic SFL-020-NN rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model SFL-020-NN, Part Number 133569 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
