Feedthrough Model: HTL-012-CN
Part Number: 133559

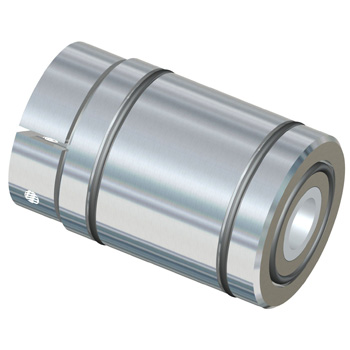

Product Description
China Advanced Ceramic Ferrofluidic seal Feedthrough Model HTL-012-CN (part number 133559) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HTL-012-CN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The HTL-012-CN vacuum rotary feedthrough features a Hollow shaft with Cartridge Seal mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

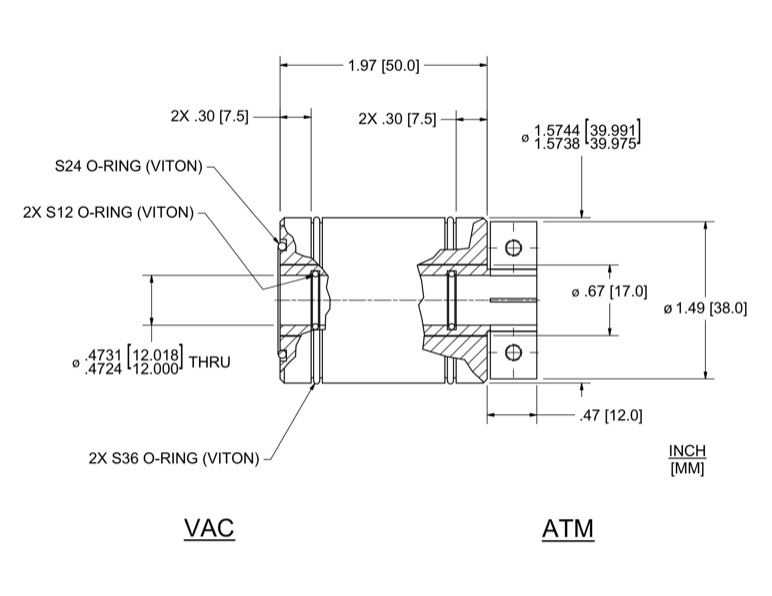

China Advanced Ceramic Part Number 133559 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 133559
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Cartridge Seal |
| Features: |
Shaft Clamp |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 12 (+.018/-0) mm |
| Overall length | 62 mm |
| Housing overall length | 50 mm |
| Housing diameter | 40 (-.009/-.025) mm |
| Body length | 50 mm |
| Clamp diameter | 31.8 mm |
| Clamp thickness | 12 mm |
| Recommended shaft diameter | 11.98 |
| Recommended mounting bore | 40 (+.02/0) mm |
| Flange Type | Cartridge |
Bearing Specifications: |
|
| Bearing type/material | 16003 |
| Bearing Dim A | 9.2 mm |
| Bearing Dim B | 31.5 mm |
 |
|
Performance Characteristics: |
|
| Starting Torque 100rpm * | 36.79 N-mm |
| Running Torque 100rpm ** | 21.75 N-mm |
| Starting Torque 1000rpm * | 66.87 N-mm |
| Running Torque 1000rpm ** | 33.40 N-mm |
| Limiting Speed [rpm] | 8625 |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
Ordering Information for Model HTL-012-CN, Part Number 133559
If you have questions about pricing and availability, need more information about China Advanced Ceramic HTL-012-CN rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »
Special Orders, Modifications, and Customized Solutions for Unique Applications
Model HTL-012-CN, Part Number 133559 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
