Feedthrough Model: HTL-010-NN
Part Number: 133554



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HTL-010-NN (part number 133554) is a member of China Advanced Ceramic Cartridge Mount Feedthroughs. The HTL-010-NN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The HTL-010-NN vacuum rotary feedthrough features a Hollow shaft with Cartridge Seal mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 133554 Dimension Specification Drawing

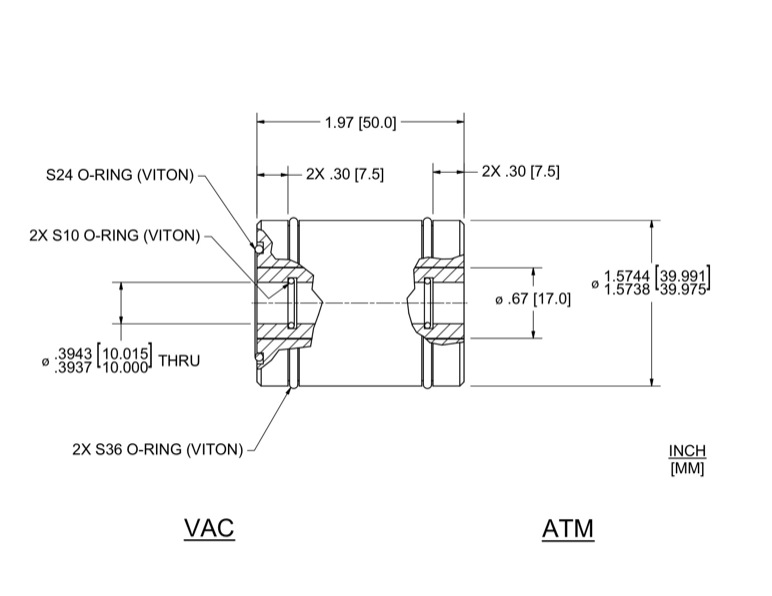

Feedthrough Model HTL-010-NN (part number 133554) dimensional specifications drawing

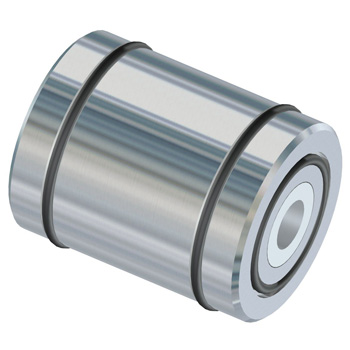

Feedthrough Model HTL-010-NN (part number 133554) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133554

Shaft Hollow Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Cartridge Seal

Dimensions:
Shaft (or bore) Diameter with tolerance 10 (+.015/-0) mm
Overall length 50 mm
Housing overall length 50 mm
Housing diameter 40 (-.009/-.025) mm
Body length 50 mm
Recommended shaft diameter 9.98
Recommended mounting bore 40 (+.02/0) mm
Flange Type Cartridge

Bearing Specifications:
Bearing type/material 16003
Bearing Dim A 9.1 mm
Bearing Dim B 31.5 mm
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 26.62 N-mm
Running Torque 100rpm ** 15.75 N-mm
Starting Torque 1000rpm * 48.37 N-mm
Running Torque 1000rpm ** 24.15 N-mm
Limiting Speed [rpm] 10000
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model HTL-010-NN, Part Number 133554

If you have questions about pricing and availability, need more information about China Advanced Ceramic HTL-010-NN rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model HTL-010-NN, Part Number 133554 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
