Feedthrough Model: HS-3000-SLFEC
Part Number: 133218



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-3000-SLFEC (part number 133218) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HS-3000-SLFEC vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The HS-3000-SLFEC vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

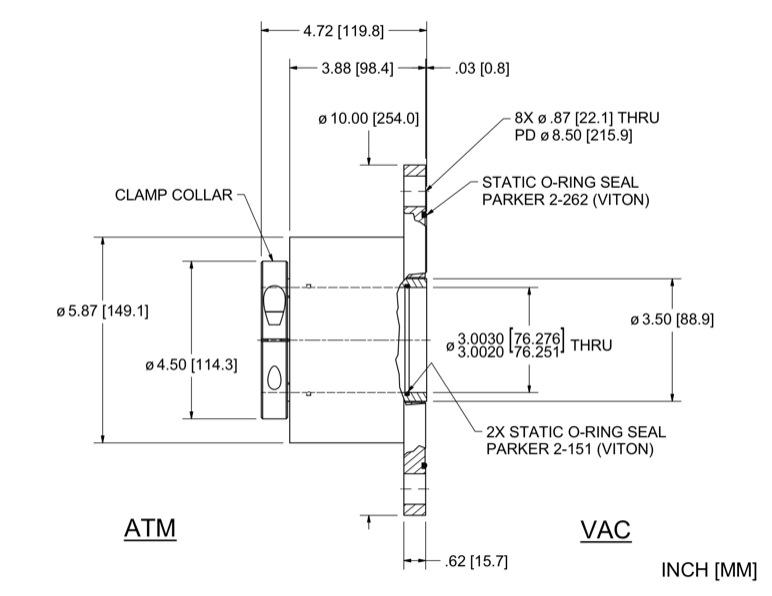

China Advanced Ceramic Part Number 133218 Dimension Specification Drawing

Feedthrough Model HS-3000-SLFEC (part number 133218) dimensional specifications drawing

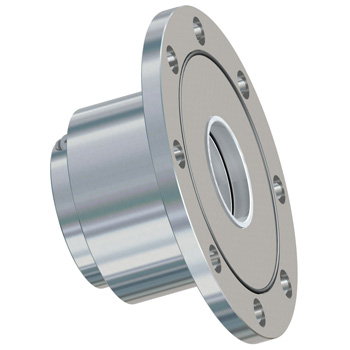

Feedthrough Model HS-3000-SLFEC (part number 133218) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133218

Shaft Hollow Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange
Features: Shaft Clamp

Dimensions:
Shaft (or bore) Diameter with tolerance 3.0025  in
Shaft extension (Vac) 0.03 in
Overall length 4.717 in
Housing overall length 3.875 in
Housing diameter 5.87  in
Body length 3.225 in
Clamp diameter 4.5 in
Clamp thickness 0.75 in
Recommended shaft diameter
Flange diameter 10 in
Flange thickness 0.62 in
Mounting holes .87, 8x on 8.50 bc in
Face seal O-ring 2-262

Bearing Specifications:
Bearing type/material 6917
Bearing Dim A 0.64 in
Bearing Dim B 2.51 in
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 258 in-oz
Running Torque 100rpm ** 152 in-oz
Starting Torque 1000rpm * 469 in-oz
Running Torque 1000rpm ** 234 in-oz
Limiting Speed [rpm] 880
Notes flange geometry can be modified easily
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model HS-3000-SLFEC, Part Number 133218

If you have questions about pricing and availability, need more information about China Advanced Ceramic HS-3000-SLFEC rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model HS-3000-SLFEC, Part Number 133218 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
