Feedthrough Model: SNL-006-NN
Part Number: 133029



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SNL-006-NN (part number 133029) is a member of China Advanced Ceramic Nut-Mount Feedthroughs. The SNL-006-NN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SNL-006-NN vacuum rotary feedthrough features a Solid shaft with Nut Mounted (threaded body) mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

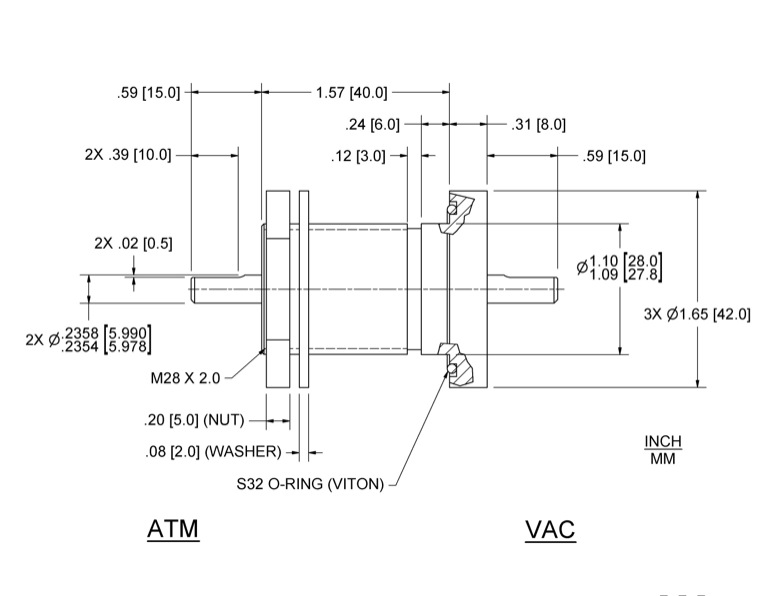

China Advanced Ceramic Part Number 133029 Dimension Specification Drawing

Feedthrough Model SNL-006-NN (part number 133029) dimensional specifications drawing

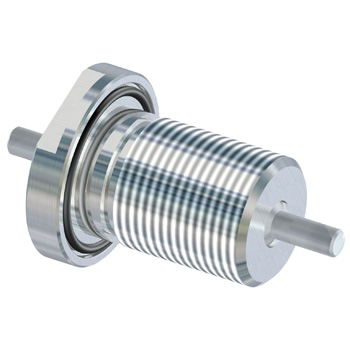

Feedthrough Model SNL-006-NN (part number 133029) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 133029

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Nut Mounted (threaded body)
Mounting Nut and Washer Included

Dimensions:
Shaft (or bore) Diameter with tolerance 6 (-0.010/-0.022) mm
Shaft termination 0.50 d x 10.0 L (flat) mm
Shaft extension (Vac) 15 mm
Overall length 78 mm
Housing overall length 48 mm
Housing diameter 28  mm
Body length 40 mm
Thread diameter 28 mm
Thread pitch [tps] or [mm/thd] (metric) 2 [mm/thd]
Thread length 31 mm
Recommended mounting bore 28.5
Flange diameter 42 mm
Flange thickness 8 mm
Flange wrench flat 36 mm

Bearing Specifications:
Bearing type/material SR61
Bearing Dim A 21.8 mm
Bearing Dim B 33.3 mm

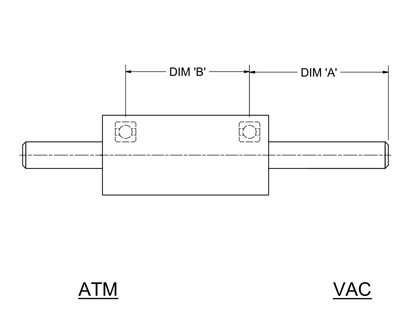

Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 2.89 N-m
Starting Torque 100rpm * 2.9 N-mm
Running Torque 100rpm ** 1.7 N-mm
Starting Torque 1000rpm * 5.3 N-mm
Running Torque 1000rpm ** 2.61 N-mm
Limiting Speed [rpm] 10000
Notes shaft length can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SNL-006-NN, Part Number 133029

If you have questions about pricing and availability, need more information about China Advanced Ceramic SNL-006-NN rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model SNL-006-NN, Part Number 133029 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
