Feedthrough Model: HS-500-SLXSC
Part Number: 132405
Product Description

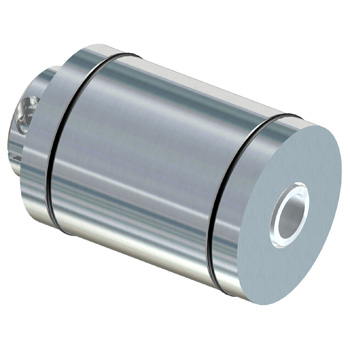

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-500-SLXSC (part number 132405) is a member of China Advanced Ceramic Cartridge Mount Feedthroughs. The HS-500-SLXSC vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The HS-500-SLXSC vacuum rotary feedthrough features a Hollow shaft with Cartridge Seal mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

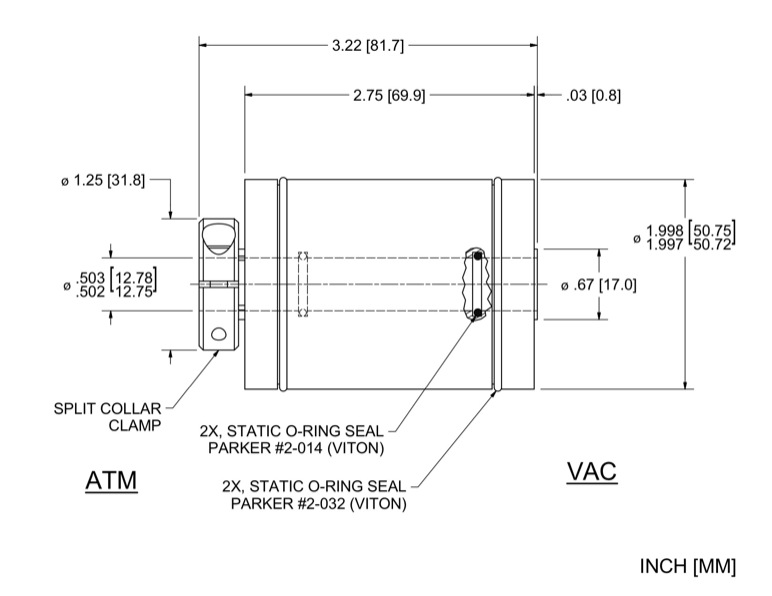

China Advanced Ceramic Part Number 132405 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 132405
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Cartridge Seal |
| Features: |
Shaft Clamp |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.5025 in |
| Shaft extension (Vac) | 0.03 in |
| Overall length | 3.215 in |
| Housing overall length | 2.75 in |
| Housing diameter | 1.9975 in |
| Body length | 2.75 in |
| Clamp diameter | 1.25 in |
| Clamp thickness | 0.375 in |
| Recommended shaft diameter | 0.5 |
| Recommended mounting bore | 2 (+.002/-0) in |
Bearing Specifications: |
|
| Bearing type/material | 16003 |
| Bearing Dim A | 0.27 in |
| Bearing Dim B | 2.17 in |
 |
|
Performance Characteristics: |
|
| Starting Torque 100rpm * | 4.92 in-oz |
| Running Torque 100rpm ** | 2.9 in-oz |
| Starting Torque 1000rpm * | 8.94 in-oz |
| Running Torque 1000rpm ** | 4.47 in-oz |
| Limiting Speed [rpm] | 9000 |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
Ordering Information for Model HS-500-SLXSC, Part Number 132405
If you have questions about pricing and availability, need more information about China Advanced Ceramic HS-500-SLXSC rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »
Special Orders, Modifications, and Customized Solutions for Unique Applications
Model HS-500-SLXSC, Part Number 132405 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
