Feedthrough Model: CM-3000-CLFSWC
Part Number: 132125
Product Description

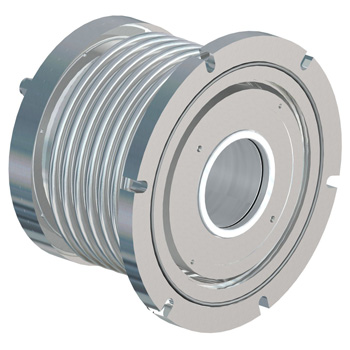

China Advanced Ceramic Ferrofluidic seal Feedthrough Model CM-3000-CLFSWC (part number 132125) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The CM-3000-CLFSWC vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The CM-3000-CLFSWC vacuum rotary feedthrough features a Hollow shaft with Compliant Mount mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

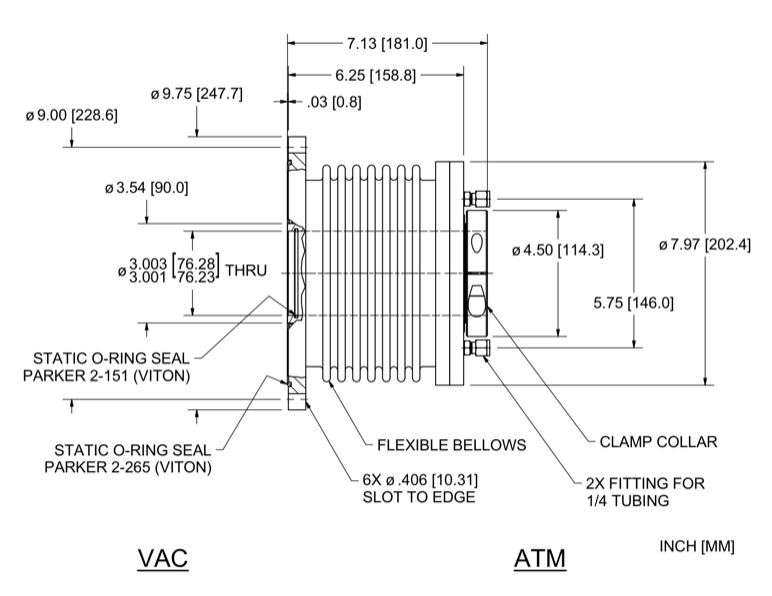

China Advanced Ceramic Part Number 132125 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 132125
| Shaft | Hollow Shaft |
| Shaft Support: |
Cantilevered (both on atm side) |
| Ferrofluid | Standard |
| Mounting | Compliant Mount |
| Features: |
Water-cooled Shaft Clamp |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 3.002 in |
| Shaft extension (Vac) | 0.03 in |
| Overall length | 7.125 in |
| Housing overall length | 5.755 in |
| Housing diameter | 7.97 in |
| Body length | 5.755 in |
| Clamp diameter | 4.5 in |
| Clamp thickness | 0.875 in |
| Recommended shaft diameter | 3 |
| Flange diameter | 9.75 in |
| Flange thickness | 0.62 in |
| Mounting holes | .406, 6x on 9.000 bc in |
| Flange Type | Flange |
| Face seal O-ring | 2-265 |
Bearing Specifications: |
|
| Bearing type/material | 6918 |
| Bearing Dim A | 2.71 in |
| Bearing Dim B | 2.889 in |
 |
|
Performance Characteristics: |
|
| Starting Torque 100rpm * | 444 in-oz |
| Running Torque 100rpm ** | 262 in-oz |
| Starting Torque 1000rpm * | 808 in-oz |
| Running Torque 1000rpm ** | 404 in-oz |
| Limiting Speed [rpm] *** | 940 |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. *** Water cooling may permit significantly higher speed. Consult your Field Engineer. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
Ordering Information for Model CM-3000-CLFSWC, Part Number 132125
If you have questions about pricing and availability, need more information about China Advanced Ceramic CM-3000-CLFSWC rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »
Special Orders, Modifications, and Customized Solutions for Unique Applications
Model CM-3000-CLFSWC, Part Number 132125 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
