Feedthrough Model: CM-1000-CLFSWC
Part Number: 132122



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model CM-1000-CLFSWC (part number 132122) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The CM-1000-CLFSWC vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The CM-1000-CLFSWC vacuum rotary feedthrough features a Hollow shaft with Compliant Mount mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

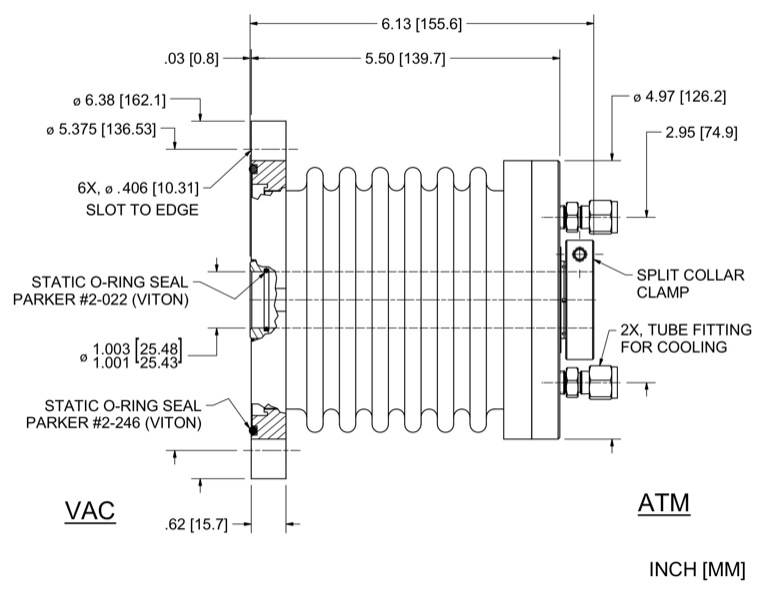

China Advanced Ceramic Part Number 132122 Dimension Specification Drawing

Feedthrough Model CM-1000-CLFSWC (part number 132122) dimensional specifications drawing

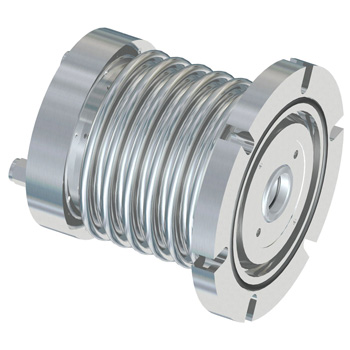

Feedthrough Model CM-1000-CLFSWC (part number 132122) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 132122

Shaft Hollow Shaft
Shaft Support: Cantilevered (both on atm side)
Ferrofluid Standard
Mounting Compliant Mount
Features: Water-cooled
Shaft Clamp

Dimensions:
Shaft (or bore) Diameter with tolerance 1.002  in
Shaft extension (Vac) 0.03 in
Overall length 6.125 in
Housing overall length 5.5 in
Housing diameter 4.97  in
Body length 4.88 in
Clamp diameter 2.13 in
Clamp thickness 0.5 in
Recommended shaft diameter
Flange diameter 6.38 in
Flange thickness 0.62 in
Fitting locations 2.95 bc in
Mounting holes .406 w slots, 6x on 5.375 bc in
Face seal O-ring 2-246

Bearing Specifications:
Bearing type/material 6007
Bearing Dim A 2.62 in
Bearing Dim B 2.31 in
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 21.6 in-oz
Running Torque 100rpm ** 12.8 in-oz
Starting Torque 1000rpm * 39.3 in-oz
Running Torque 1000rpm ** 19.7 in-oz
Limiting Speed [rpm] *** 3710
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

*** Water cooling may permit significantly higher speed. Consult your Field Engineer.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model CM-1000-CLFSWC, Part Number 132122

If you have questions about pricing and availability, need more information about China Advanced Ceramic CM-1000-CLFSWC rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model CM-1000-CLFSWC, Part Number 132122 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
