Feedthrough Model: SNL-010-NN
Part Number: 121503



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SNL-010-NN (part number 121503) is a member of China Advanced Ceramic Nut-Mount Feedthroughs. The SNL-010-NN vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SNL-010-NN vacuum rotary feedthrough features a Solid shaft with Nut Mounted (threaded body) mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

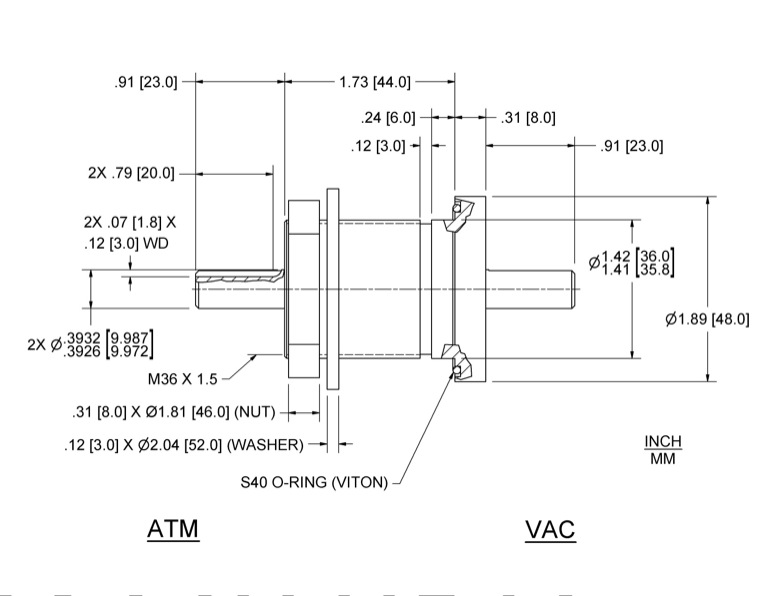

China Advanced Ceramic Part Number 121503 Dimension Specification Drawing

Feedthrough Model SNL-010-NN (part number 121503) dimensional specifications drawing

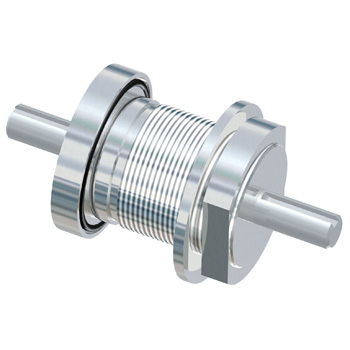

Feedthrough Model SNL-010-NN (part number 121503) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 121503

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Nut Mounted (threaded body)
Mounting Nut and Washer Included

Dimensions:
Shaft (or bore) Diameter with tolerance 9.979  mm
Shaft termination 3.012 w. x 1.85 d x 20.20 l. (keyway) mm
Shaft extension (Vac) 23 mm
Overall length 98 mm
Housing overall length 52 mm
Body length 44 mm
Thread diameter 36 mm
Thread pitch [tps] or [mm/thd] (metric) 1.5 [mm/thd]
Thread length 42 mm
Recommended mounting bore 36.5
Flange diameter 48 mm
Flange thickness 8 mm

Bearing Specifications:
Bearing type/material 6001
Bearing Dim A 32 mm
Bearing Dim B 35.1 mm
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 13.5 N-m
Starting Torque 100rpm * 5.44 N-mm
Running Torque 100rpm ** 3.25 N-mm
Starting Torque 1000rpm * 9.89 N-mm
Running Torque 1000rpm ** 4.94 N-mm
Limiting Speed [rpm] 10000
Notes shaft length can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SNL-010-NN, Part Number 121503

If you have questions about pricing and availability, need more information about China Advanced Ceramic SNL-010-NN rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model SNL-010-NN, Part Number 121503 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
