Feedthrough Model: SS-1000-SLFAW
Part Number: 121159



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-1000-SLFAW (part number 121159) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-1000-SLFAW vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SS-1000-SLFAW vacuum rotary feedthrough features a Solid shaft with Ferro Flange mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 121159 Dimension Specification Drawing

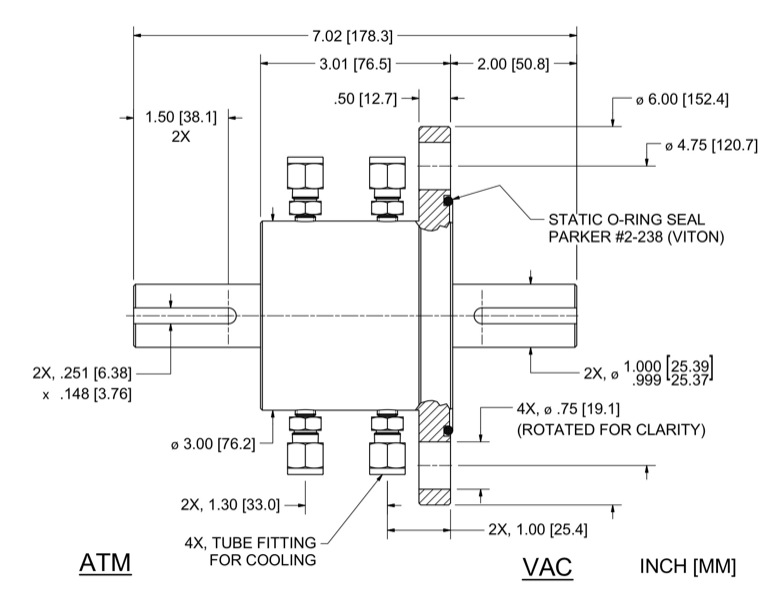

Feedthrough Model SS-1000-SLFAW (part number 121159) dimensional specifications drawing

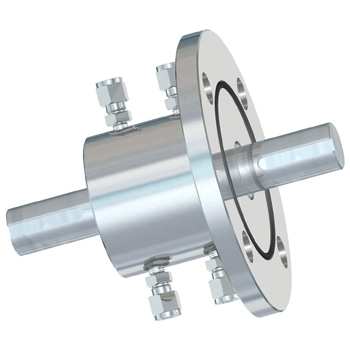

Feedthrough Model SS-1000-SLFAW (part number 121159) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 121159

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange
Features: Water-cooled

Dimensions:
Shaft (or bore) Diameter with tolerance 0.9995 (+.0005/-.0005) in
Shaft termination .251w x .148d x 1.53L keyway in
Shaft extension (Vac) 2 in
Overall length 7.02 in
Housing overall length 3.01 in
Housing diameter 3 (+.010/-.010) in
Body length 2.51 in
Flange diameter 6 in
Flange thickness 0.53 in
Fitting locations 1.00, 1.30 in
Mounting holes .750, 4x on a 4.750 in
Flange Type Ferro flange
Face seal O-ring 2-238

Bearing Specifications:
Bearing type/material 6906
Bearing Dim A 2.52 in
Bearing Dim B 2.21 in
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 1960 in-lb
Starting Torque 100rpm * 29.2 in-oz
Running Torque 100rpm ** 17.3 in-oz
Starting Torque 1000rpm * 53.1 in-oz
Running Torque 1000rpm ** 26.6 in-oz
Limiting Speed [rpm] *** 3900
Notes shaft length and flange geometry can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

*** Water cooling may permit significantly higher speed. Consult your Field Engineer.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SS-1000-SLFAW, Part Number 121159
