Feedthrough Model: SS-1000-SLFA
Part Number: 121152



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-1000-SLFA (part number 121152) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-1000-SLFA vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SS-1000-SLFA vacuum rotary feedthrough features a Solid shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

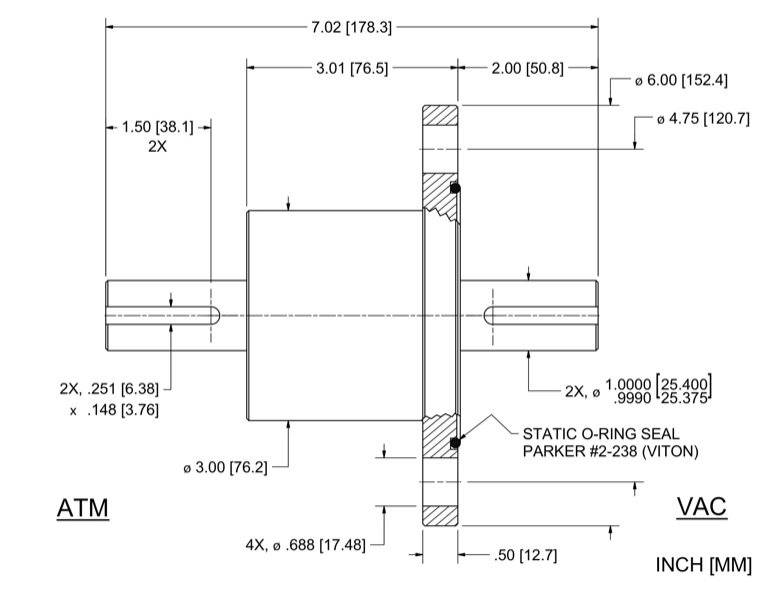

China Advanced Ceramic Part Number 121152 Dimension Specification Drawing

Feedthrough Model SS-1000-SLFA (part number 121152) dimensional specifications drawing

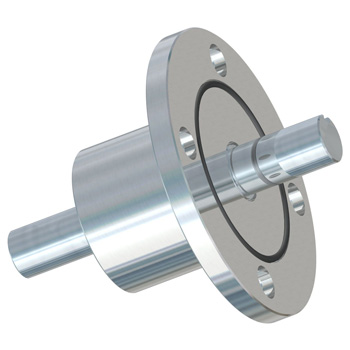

Feedthrough Model SS-1000-SLFA (part number 121152) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 121152

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 0.9995 (+.0005/-.0005) in
Shaft termination .251w x .148d x 1.5L keyway in
Shaft extension (Vac) 2 in
Overall length 7.02 in
Housing overall length 3.01 in
Housing diameter 3 (+.010/-.010) in
Body length 2.51 in
Flange diameter 6 in
Flange thickness 0.53 in
Mounting holes .688, 4 x on 4.75 in
Flange Type ASA vacuum flange
Face seal O-ring 2-238

Bearing Specifications:
Bearing type/material 6906
Bearing Dim A 2.52 in
Bearing Dim B 2.21 in
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 1960 in-lb
Starting Torque 100rpm * 29.2 in-oz
Running Torque 100rpm ** 17.3 in-oz
Starting Torque 1000rpm * 53.1 in-oz
Running Torque 1000rpm ** 26.6 in-oz
Limiting Speed [rpm] 3900
Notes shaft length and flange geometry can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SS-1000-SLFA, Part Number 121152

If you have questions about pricing and availability, need more information about China Advanced Ceramic SS-1000-SLFA rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model SS-1000-SLFA, Part Number 121152 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
