Feedthrough Model: SS-375-SLKC
Part Number: 121062



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-375-SLKC (part number 121062) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-375-SLKC vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SS-375-SLKC vacuum rotary feedthrough features a Solid shaft with KF Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 121062 Dimension Specification Drawing

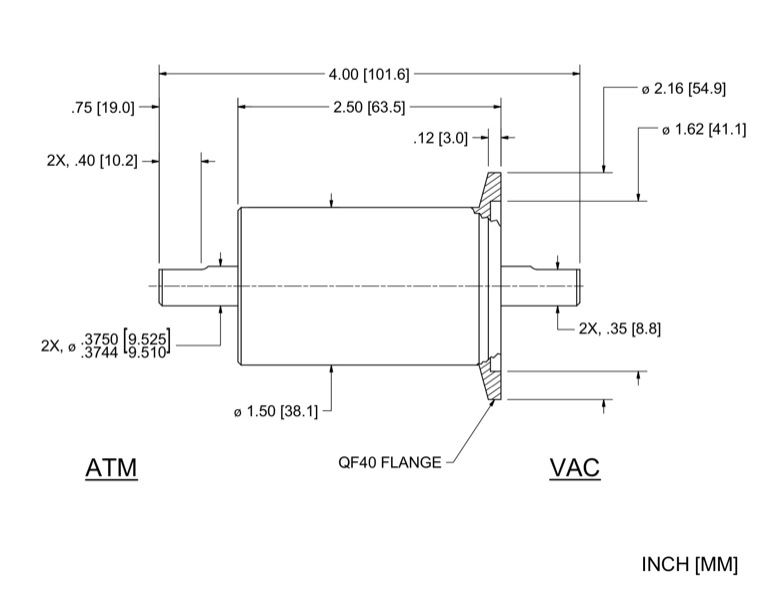

Feedthrough Model SS-375-SLKC (part number 121062) dimensional specifications drawing

Feedthrough Model SS-375-SLKC (part number 121062) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 121062

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting KF Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 0.3747  in
Shaft termination .030d x .40L (flat) in
Shaft extension (Vac) 0.75 in
Overall length 4 in
Housing overall length 2.5 in
Housing diameter 1.5 (+.010/-.010) in
Body length 2.291 in
Flange diameter 2.16 in
Flange thickness 0.208 in
Flange Type KF Flange

Bearing Specifications:
Bearing type/material SR61
Bearing Dim A 1.12 in
Bearing Dim B 1.77 in
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 67.1 in-lb
Starting Torque 100rpm * 0.57 in-oz
Running Torque 100rpm ** 0.34 in-oz
Starting Torque 1000rpm * 1.04 in-oz
Running Torque 1000rpm ** 0.52 in-oz
Limiting Speed [rpm] 10000
Notes shaft length can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SS-375-SLKC, Part Number 121062
