Feedthrough Model: SS-375-CFCB
Part Number: 121060
Product Description

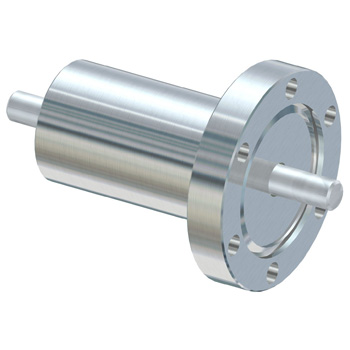

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-375-CFCB (part number 121060) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-375-CFCB vacuum rotary feedthrough uses China Advanced Ceramic fluorocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Reactive Gas environments.
The SS-375-CFCB vacuum rotary feedthrough features a Solid shaft with ConFlat Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

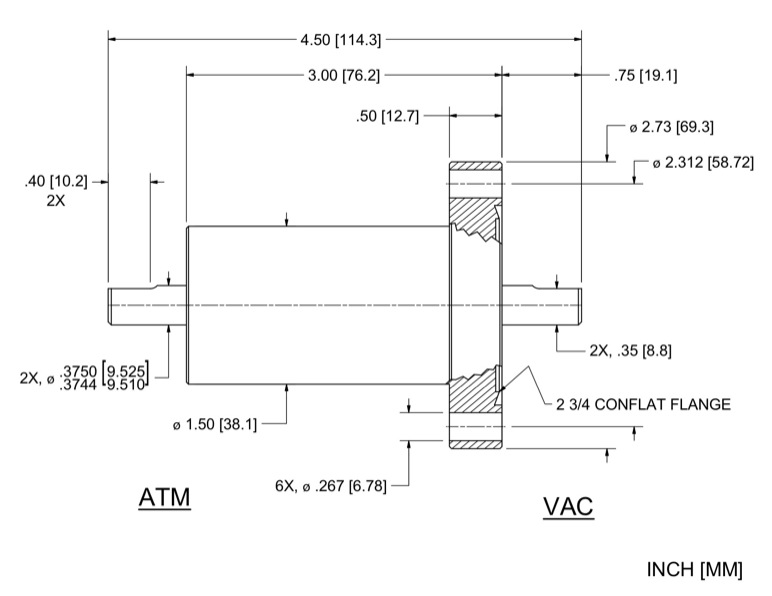

China Advanced Ceramic Part Number 121060 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 121060
| Shaft | Solid Shaft |
| Shaft Support: |
Cantilevered (both on atm side) |
| Ferrofluid | Reactive Gas |
| Mounting | ConFlat Flange |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.3747 in |
| Shaft termination | .030d x 40L(flat) in |
| Shaft extension (Vac) | 0.75 in |
| Overall length | 4.5 in |
| Housing overall length | 3 in |
| Housing diameter | 1.5 in |
| Body length | 2.5 in |
| Flange diameter | 2.73 in |
| Flange thickness | 0.5 in |
| Mounting holes | 0.265, 6x on 2.312 bc. in |
| Flange Type | ConFlat Flange |
Bearing Specifications: |
|
| Bearing type/material | DDL-1910 |
| Bearing Dim A | 2.64 in |
| Bearing Dim B | 0.88 in |
 |
|
Performance Characteristics: |
|
| Shaft Torque Capacity | 67.1 in-lb |
| Starting Torque 100rpm * | 1.94 in-oz |
| Running Torque 100rpm ** | 1.15 in-oz |
| Starting Torque 1000rpm * | 3.53 in-oz |
| Running Torque 1000rpm ** | 1.77 in-oz |
| Limiting Speed [rpm] | 10000 |
| Notes | shaft length can be modified easily |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
Ordering Information for Model SS-375-CFCB, Part Number 121060
If you have questions about pricing and availability, need more information about China Advanced Ceramic SS-375-CFCB rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »
Special Orders, Modifications, and Customized Solutions for Unique Applications
Model SS-375-CFCB, Part Number 121060 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
