Feedthrough Model: SS-375-SLES
Part Number: 114892
Product Description

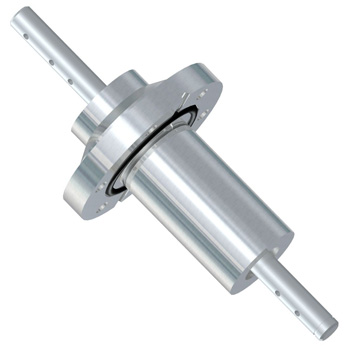

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-375-SLES (part number 114892) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-375-SLES vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The SS-375-SLES vacuum rotary feedthrough features a Solid shaft with Custom mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

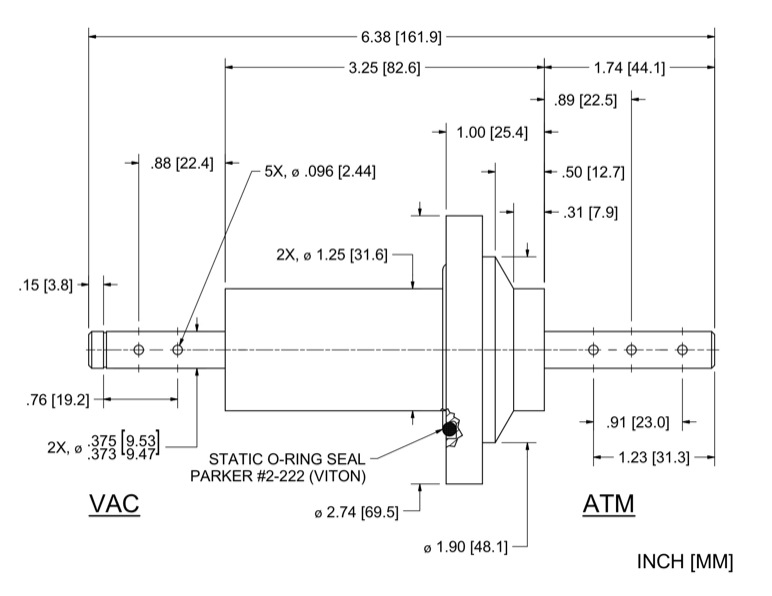

China Advanced Ceramic Part Number 114892 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 114892
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Custom |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.375 in |
| Shaft extension (Vac) | 1.391 in |
| Overall length | 6.375 in |
| Housing overall length | 3.25 in |
| Housing diameter | 1.895 in |
| Body length | 2.25 in |
| Recommended mounting bore | 1.255 |
| Flange diameter | 2.735 in |
| Flange thickness | 0.375 in |
| Mounting holes | .228 6x on 2.250 bc in |
| Face seal O-ring | 2-222 |
Bearing Specifications: |
|
| Bearing type/material | SR61 |
| Bearing Dim A | 1.67 in |
| Bearing Dim B | 2.67 in |
 |
|
Performance Characteristics: |
|
| Shaft Torque Capacity | 201 in-lb |
| Starting Torque 100rpm * | 0.57 in-oz |
| Running Torque 100rpm ** | 0.34 in-oz |
| Starting Torque 1000rpm * | 1.04 in-oz |
| Running Torque 1000rpm ** | 0.52 in-oz |
| Limiting Speed [rpm] | 10000 |
| Notes | shaft length and flange geometry can be modified easily |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
