Feedthrough Model: HS-1500-CFFBWP
Part Number: 107424



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-1500-CFFBWP (part number 107424) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HS-1500-CFFBWP vacuum rotary feedthrough uses China Advanced Ceramic fluorocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Reactive Gas environments.

The HS-1500-CFFBWP vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

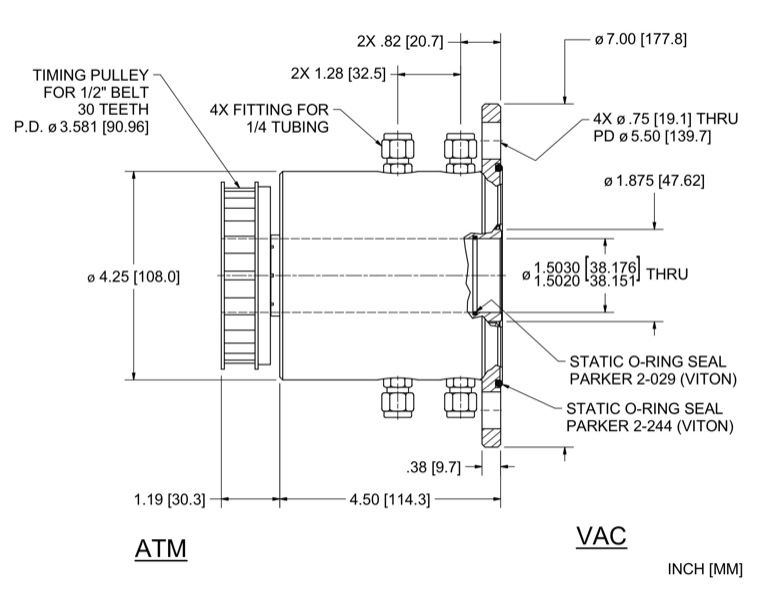

China Advanced Ceramic Part Number 107424 Dimension Specification Drawing

Feedthrough Model HS-1500-CFFBWP (part number 107424) dimensional specifications drawing

Feedthrough Model HS-1500-CFFBWP (part number 107424) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 107424

Shaft Hollow Shaft
Shaft Support: Cantilevered (both on atm side)
Ferrofluid Reactive Gas
Mounting Ferro Flange
Features: Water-cooled

Dimensions:
Shaft (or bore) Diameter with tolerance 1.5025  in
Shaft extension (Vac) 0.03 in
Overall length 5.71 in
Housing overall length 4.5 in
Housing diameter 4.25  in
Body length 4.12 in
Recommended shaft diameter 1.5
Flange diameter 7 in
Flange thickness 0.38 in
Fitting locations .750, 4x on 5.500 bc in
Face seal O-ring 2-244

Bearing Specifications:
Bearing type/material 7009
Bearing Dim A 2.96 in
Bearing Dim B 0.63 in
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 397 in-oz
Running Torque 100rpm ** 234 in-oz
Starting Torque 1000rpm * 721 in-oz
Running Torque 1000rpm ** 360 in-oz
Limiting Speed [rpm] *** 2370
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

*** Water cooling may permit significantly higher speed. Consult your Field Engineer.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model HS-1500-CFFBWP, Part Number 107424

If you have questions about pricing and availability, need more information about China Advanced Ceramic HS-1500-CFFBWP rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model HS-1500-CFFBWP, Part Number 107424 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
