Feedthrough Model: HS-1000-SLFBCW
Part Number: 105396
Product Description

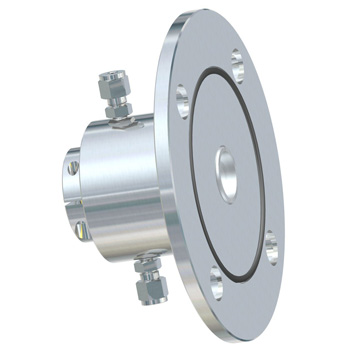

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-1000-SLFBCW (part number 105396) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HS-1000-SLFBCW vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The HS-1000-SLFBCW vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

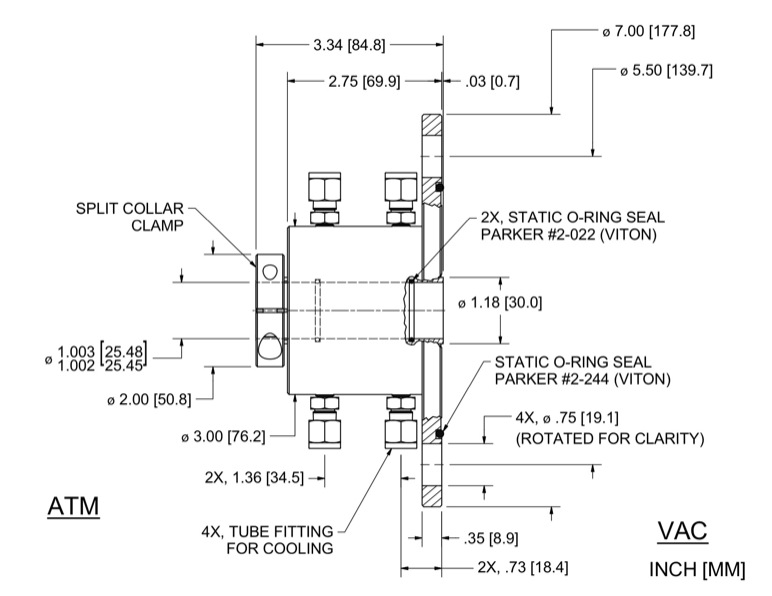

China Advanced Ceramic Part Number 105396 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 105396
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Ferro Flange |
| Features: |
Water-cooled Shaft Clamp |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 1.0025 in |
| Shaft extension (Vac) | 0.026 in |
| Overall length | 3.34 in |
| Housing overall length | 2.75 in |
| Housing diameter | 3 in |
| Body length | 2.4 in |
| Clamp diameter | 2 in |
| Clamp thickness | 0.5 in |
| Recommended shaft diameter | 1 |
| Flange diameter | 7 in |
| Flange thickness | 0.35 in |
| Fitting locations | .73, 1.36 in |
| Mounting holes | 0.750, 4x on 5.500 bc in |
| Face seal O-ring | 2-244 |
Bearing Specifications: |
|
| Bearing type/material | 6906 |
| Bearing Dim A | 0.25 in |
| Bearing Dim B | 2.21 in |
 |
|
Performance Characteristics: |
|
| Starting Torque 100rpm * | 29.2 in-oz |
| Running Torque 100rpm ** | 17.3 in-oz |
| Starting Torque 1000rpm * | 53.1 in-oz |
| Running Torque 1000rpm ** | 26.6 in-oz |
| Limiting Speed [rpm] *** | 3900 |
| Notes | flange geometry can be modified easily |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. *** Water cooling may permit significantly higher speed. Consult your Field Engineer. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
Ordering Information for Model HS-1000-SLFBCW, Part Number 105396
