Feedthrough Model: HS-500-SLFACW
Part Number: 105395



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-500-SLFACW (part number 105395) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HS-500-SLFACW vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The HS-500-SLFACW vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

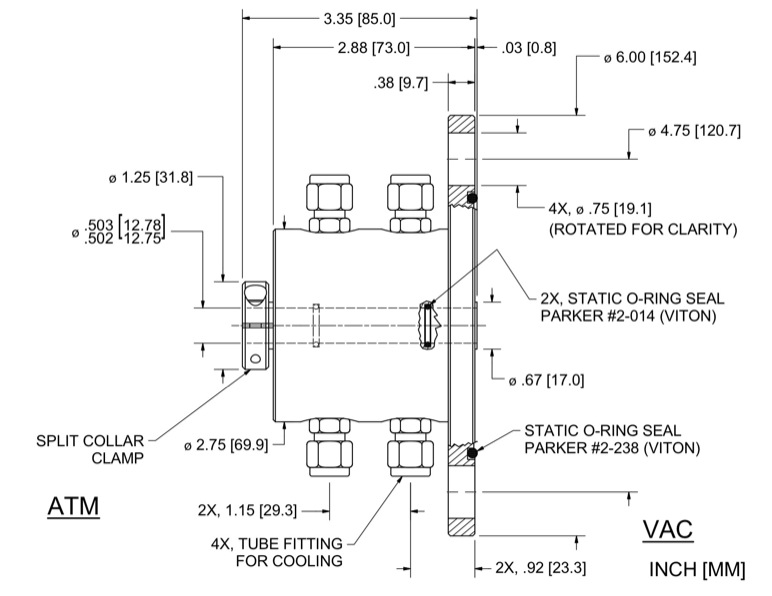

China Advanced Ceramic Part Number 105395 Dimension Specification Drawing

Feedthrough Model HS-500-SLFACW (part number 105395) dimensional specifications drawing

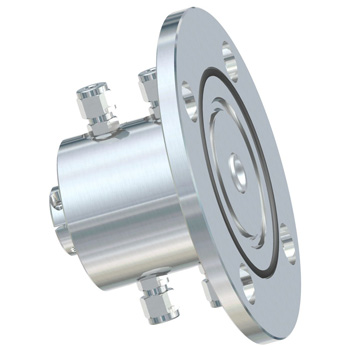

Feedthrough Model HS-500-SLFACW (part number 105395) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 105395

Shaft Hollow Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange
Features: Water-cooled
Shaft Clamp

Dimensions:
Shaft (or bore) Diameter with tolerance 0.5025  in
Shaft extension (Vac) 0.03 in
Overall length 3.345 in
Housing overall length 2.875 in
Housing diameter 2.75  in
Body length 2.495 in
Clamp diameter 1.25 in
Clamp thickness 0.38 in
Recommended shaft diameter 0.5
Flange diameter 6 in
Flange thickness 0.38 in
Fitting locations .917, 1.154 in
Mounting holes 0.750, 4x on 4.750 bc in
Face seal O-ring 2-238

Bearing Specifications:
Bearing type/material 6903
Bearing Dim A 0.41 in
Bearing Dim B 2.13 in
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 8.6 in-oz
Running Torque 100rpm ** 5.08 in-oz
Starting Torque 1000rpm * 15.6 in-oz
Running Torque 1000rpm ** 7.82 in-oz
Limiting Speed [rpm] *** 9000
Notes flange geometry can be modified easily
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

*** Water cooling may permit significantly higher speed. Consult your Field Engineer.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model HS-500-SLFACW, Part Number 105395

If you have questions about pricing and availability, need more information about China Advanced Ceramic HS-500-SLFACW rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model HS-500-SLFACW, Part Number 105395 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
