Feedthrough Model: SS-250-SLCA
Part Number: 103915
Product Description

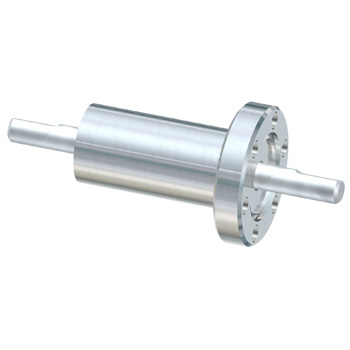

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-250-SLCA (part number 103915) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-250-SLCA vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The SS-250-SLCA vacuum rotary feedthrough features a Solid shaft with ConFlat Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

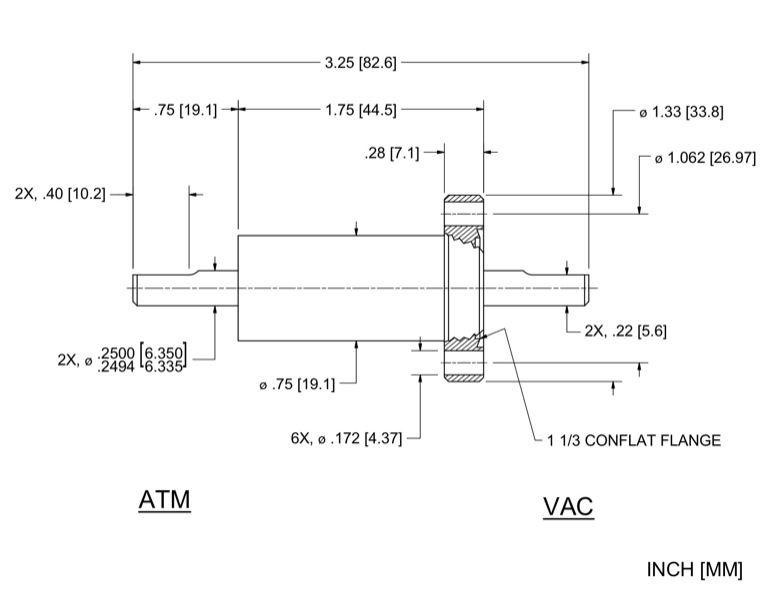

China Advanced Ceramic Part Number 103915 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 103915
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | ConFlat Flange |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.2497 in |
| Shaft termination | .030d x .40L(flat) in |
| Shaft extension (Vac) | 0.75 in |
| Overall length | 3.25 in |
| Housing overall length | 1.75 in |
| Housing diameter | 0.75 in |
| Body length | 1.47 in |
| Flange diameter | 1.33 in |
| Flange thickness | 0.28 in |
| Mounting holes | 0.172, 6x on 1.062 bc. in |
| Flange Type | ConFlat Flange |
Bearing Specifications: |
|
| Bearing type/material | SR4 |
| Bearing Dim A | 1.12 in |
| Bearing Dim B | 1.17 in |
 |
|
Performance Characteristics: |
|
| Shaft Torque Capacity | 15.5 in-lb |
| Starting Torque 100rpm * | 0.19 in-oz |
| Running Torque 100rpm ** | 0.11 in-oz |
| Starting Torque 1000rpm * | 0.34 in-oz |
| Running Torque 1000rpm ** | 0.17 in-oz |
| Limiting Speed [rpm] | 10000 |
| Notes | shaft length can be modified easily |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
