Feedthrough Model: SS-250-SLCB
Part Number: 103532



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-250-SLCB (part number 103532) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-250-SLCB vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SS-250-SLCB vacuum rotary feedthrough features a Solid shaft with ConFlat Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

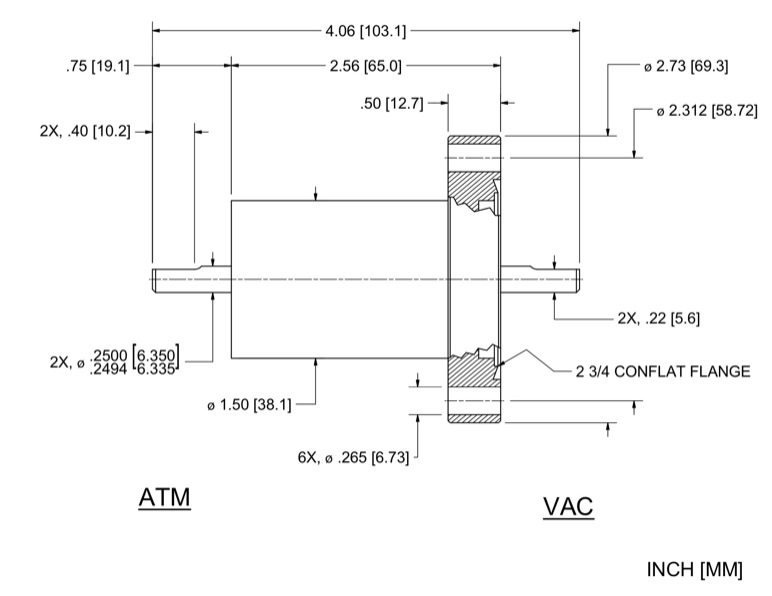

China Advanced Ceramic Part Number 103532 Dimension Specification Drawing

Feedthrough Model SS-250-SLCB (part number 103532) dimensional specifications drawing

Feedthrough Model SS-250-SLCB (part number 103532) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 103532

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting ConFlat Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 0.2497  in
Shaft termination .030d x .40L (flat) in
Shaft extension (Vac) 0.75 in
Overall length 4.06 in
Housing overall length 2.56 in
Housing diameter 1.5  in
Body length 2.06 in
Flange diameter 2.73 in
Flange thickness 0.5 in
Mounting holes 0.265, 6x on 2.312 bc. in
Flange Type ConFlat Flange

Bearing Specifications:
Bearing type/material SR4
Bearing Dim A 1.51 in
Bearing Dim B 1.17 in
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 15.5 in-lb
Starting Torque 100rpm * 0.19 in-oz
Running Torque 100rpm ** 0.11 in-oz
Starting Torque 1000rpm * 0.34 in-oz
Running Torque 1000rpm ** 0.17 in-oz
Limiting Speed [rpm] 10000
Notes shaft length can be modified easily
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SS-250-SLCB, Part Number 103532

If you have questions about pricing and availability, need more information about China Advanced Ceramic SS-250-SLCB rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model SS-250-SLCB, Part Number 103532 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
