Feedthrough Model: HS-2000-SLFBC
Part Number: 103361



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-2000-SLFBC (part number 103361) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HS-2000-SLFBC vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The HS-2000-SLFBC vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

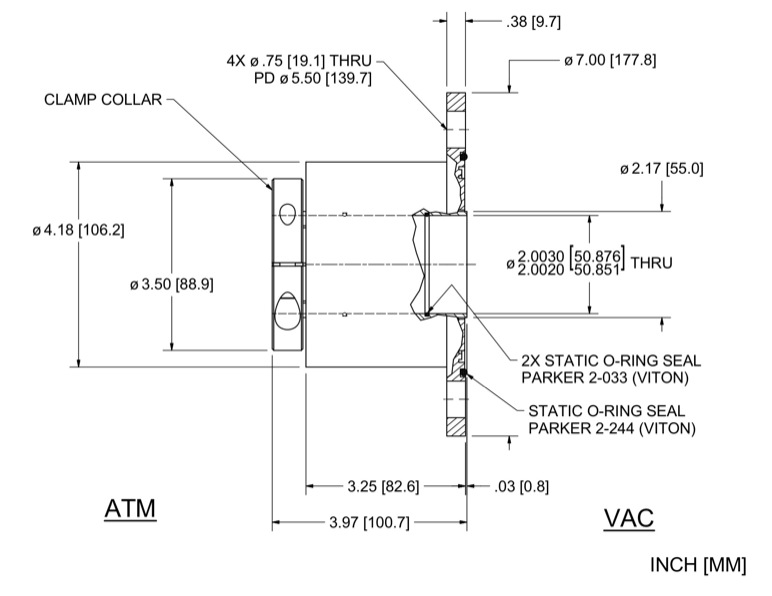

China Advanced Ceramic Part Number 103361 Dimension Specification Drawing

Feedthrough Model HS-2000-SLFBC (part number 103361) dimensional specifications drawing

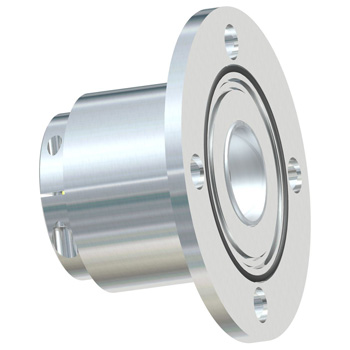

Feedthrough Model HS-2000-SLFBC (part number 103361) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 103361

Shaft Hollow Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange
Features: Shaft Clamp

Dimensions:
Shaft (or bore) Diameter with tolerance 2.0025  in
Shaft extension (Vac) 0.03 in
Overall length 3.966 in
Housing overall length 3.25 in
Housing diameter 4.18  in
Body length 2.87 in
Clamp diameter 3.5 in
Clamp thickness 0.625 in
Recommended shaft diameter
Flange diameter 7 in
Flange thickness 0.38 in
Mounting holes 0.750, 4x on 5.500 bc in
Face seal O-ring 2-244

Bearing Specifications:
Bearing type/material 6911
Bearing Dim A 0.42 in
Bearing Dim B 2.37 in
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 164 in-oz
Running Torque 100rpm ** 96.7 in-oz
Starting Torque 1000rpm * 298 in-oz
Running Torque 1000rpm ** 149 in-oz
Limiting Speed [rpm] 1640
Notes flange geometry can be modified easily
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.
