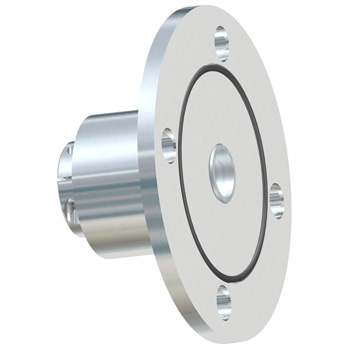

Feedthrough Model: HS-1000-SLFBC
Part Number: 103359
Product Description
China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-1000-SLFBC (part number 103359) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HS-1000-SLFBC vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The HS-1000-SLFBC vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

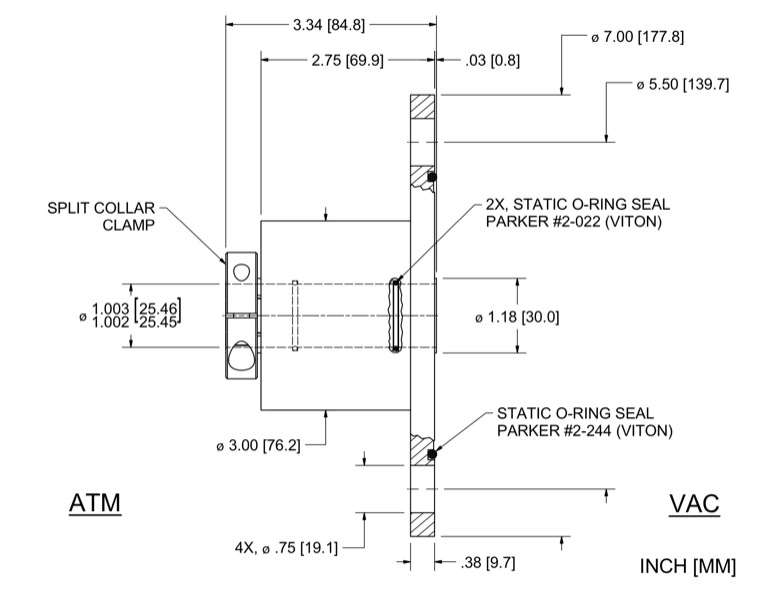

China Advanced Ceramic Part Number 103359 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 103359
| Shaft | Hollow Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Ferro Flange |
| Features: |
Shaft Clamp |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 1.0025 in |
| Shaft extension (Vac) | 0.03 in |
| Overall length | 3.34 in |
| Housing overall length | 2.75 in |
| Housing diameter | 3 in |
| Body length | 2.37 in |
| Clamp diameter | 2 in |
| Clamp thickness | 0.5 in |
| Recommended shaft diameter | 1 |
| Flange diameter | 7 in |
| Flange thickness | 0.38 in |
| Mounting holes | 0.750, 4x on 5.500 bc in |
| Face seal O-ring | 2-244 |
Bearing Specifications: |
|
| Bearing type/material | 6906 |
| Bearing Dim A | 0.33 in |
| Bearing Dim B | 2.13 in |
 |
|
Performance Characteristics: |
|
| Starting Torque 100rpm * | 29.2 in-oz |
| Running Torque 100rpm ** | 17.3 in-oz |
| Starting Torque 1000rpm * | 53.1 in-oz |
| Running Torque 1000rpm ** | 26.6 in-oz |
| Limiting Speed [rpm] | 3900 |
| Notes | flange geometry can be modified easily |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
Ordering Information for Model HS-1000-SLFBC, Part Number 103359
If you have questions about pricing and availability, need more information about China Advanced Ceramic HS-1000-SLFBC rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »
Special Orders, Modifications, and Customized Solutions for Unique Applications
Model HS-1000-SLFBC, Part Number 103359 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
Please Contact Me Regarding China Advanced Ceramic Model Number HS-1000-SLFBC
Use this form to submit your HS-1000-SLFBC (part number 103359) inquiry directly to China Advanced Ceramic. If you have special requirements or need specific customizations, please include the details in your description.
