Feedthrough Model: HS-1500-SLFBCW
Part Number: 103354



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-1500-SLFBCW (part number 103354) is a member of China Advanced Ceramic Hollow Shaft Flange Mount Feedthroughs. The HS-1500-SLFBCW vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The HS-1500-SLFBCW vacuum rotary feedthrough features a Hollow shaft with Ferro Flange mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 103354 Dimension Specification Drawing

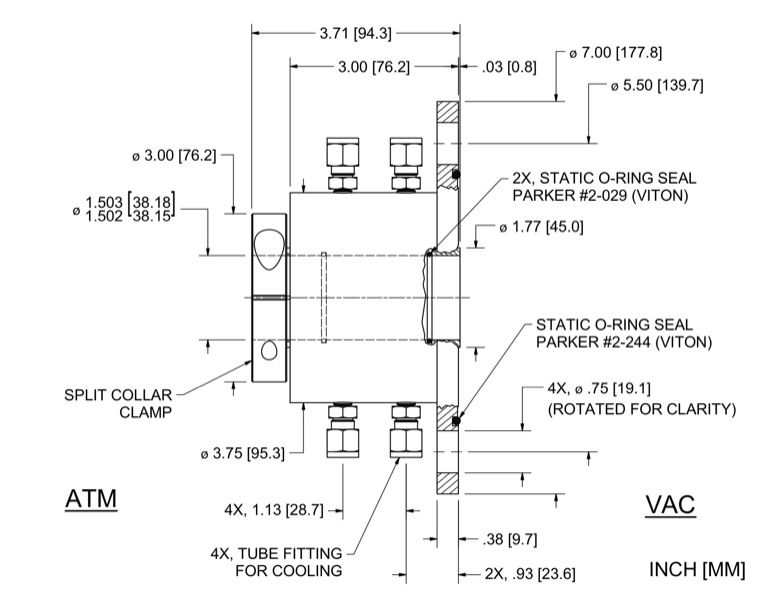

Feedthrough Model HS-1500-SLFBCW (part number 103354) dimensional specifications drawing

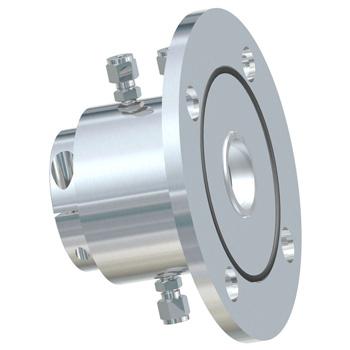

Feedthrough Model HS-1500-SLFBCW (part number 103354) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 103354

Shaft Hollow Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange
Features: Water-cooled
Shaft Clamp

Dimensions:
Shaft (or bore) Diameter with tolerance 1.5025  in
Shaft extension (Vac) 0.03 in
Overall length 3.714 in
Housing overall length 3 in
Housing diameter 3.75  in
Body length 3.62 in
Clamp diameter 3 in
Clamp thickness 0.625 in
Recommended shaft diameter 1.5
Flange diameter 7 in
Flange thickness 0.38 in
Fitting locations 0.93, 1.13 in
Mounting holes 0.750, 4x on 5.500 bc in
Face seal O-ring 2-244

Bearing Specifications:
Bearing type/material 6909
Bearing Dim A 0.31 in
Bearing Dim B 2.33 in
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 71.1 in-oz
Running Torque 100rpm ** 42 in-oz
Starting Torque 1000rpm * 129 in-oz
Running Torque 1000rpm ** 64.7 in-oz
Limiting Speed [rpm] *** 2320
Notes flange geometry can be modified easily
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

*** Water cooling may permit significantly higher speed. Consult your Field Engineer.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.
