Feedthrough Model: HS-1500-SLXSC
Part Number: 103320



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model HS-1500-SLXSC (part number 103320) is a member of China Advanced Ceramic Cartridge Mount Feedthroughs. The HS-1500-SLXSC vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The HS-1500-SLXSC vacuum rotary feedthrough features a Hollow shaft with Cartridge Seal mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

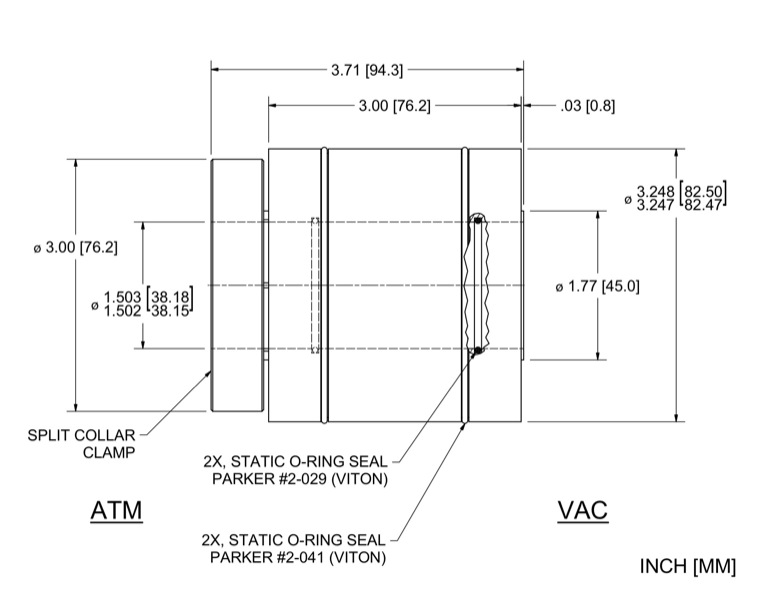

China Advanced Ceramic Part Number 103320 Dimension Specification Drawing

Feedthrough Model HS-1500-SLXSC (part number 103320) dimensional specifications drawing

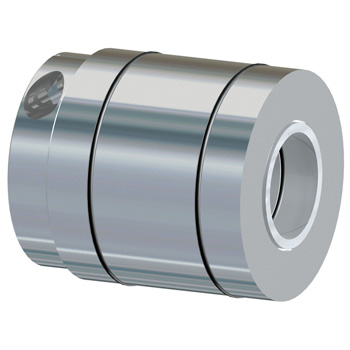

Feedthrough Model HS-1500-SLXSC (part number 103320) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 103320

Shaft Hollow Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Cartridge Seal
Features: Shaft Clamp

Dimensions:
Shaft (or bore) Diameter with tolerance 1.5025  in
Shaft extension (Vac) 0.03 in
Overall length 3.714 in
Housing overall length 3 in
Housing diameter 3.2475  in
Body length 3 in
Clamp diameter 3 in
Clamp thickness 0.625 in
Recommended shaft diameter 1.5
Recommended mounting bore 3.25 (+.002/-0) in

Bearing Specifications:
Bearing type/material 6909
Bearing Dim A 0.33 in
Bearing Dim B 2.33 in
Hollow Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Starting Torque 100rpm * 96.9 in-oz
Running Torque 100rpm ** 57.2 in-oz
Starting Torque 1000rpm * 176 in-oz
Running Torque 1000rpm ** 88.1 in-oz
Limiting Speed [rpm] 2320
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model HS-1500-SLXSC, Part Number 103320

If you have questions about pricing and availability, need more information about China Advanced Ceramic HS-1500-SLXSC rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model HS-1500-SLXSC, Part Number 103320 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Hollow shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
