Feedthrough Model: SS-750-SLFA
Part Number: 103246



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-750-SLFA (part number 103246) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-750-SLFA vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SS-750-SLFA vacuum rotary feedthrough features a Solid shaft with Ferro Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 103246 Dimension Specification Drawing

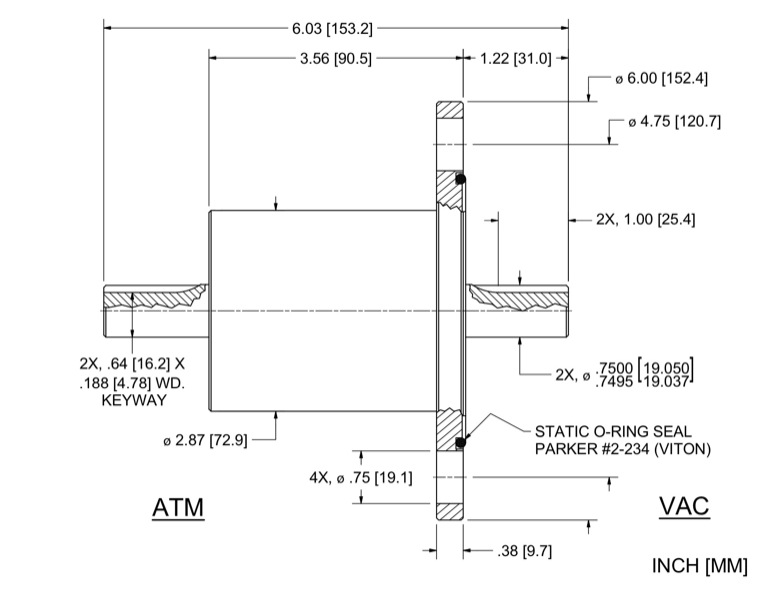

Feedthrough Model SS-750-SLFA (part number 103246) dimensional specifications drawing

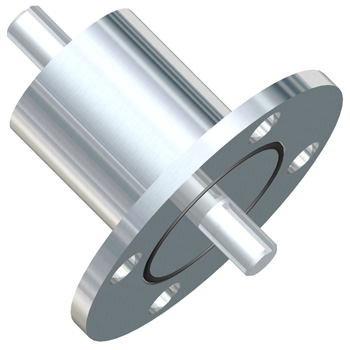

Feedthrough Model SS-750-SLFA (part number 103246) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 103246

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Ferro Flange

Dimensions:
Shaft (or bore) Diameter with tolerance 0.75  in
Shaft termination 188w x .114d x 1.0L.(keyway) in
Shaft extension (Vac) 1.218 in
Overall length 6.03 in
Housing overall length 3.562 in
Housing diameter 2.875  in
Body length 3.182 in
Flange diameter 6 in
Flange thickness 0.38 in
Mounting holes 0.750, 4x on 4.750 bc. in
Face seal O-ring 2-234

Bearing Specifications:
Bearing type/material SSR12
Bearing Dim A 1.57 in
Bearing Dim B 2.89 in
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 671 in-lb
Starting Torque 100rpm * 3.81 in-oz
Running Torque 100rpm ** 2.25 in-oz
Starting Torque 1000rpm * 6.92 in-oz
Running Torque 1000rpm ** 3.46 in-oz
Limiting Speed [rpm] 9000
Notes shaft length and flange geometry can be modified easily
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.
