Feedthrough Model: SS-750-SLAEW
Part Number: 103206



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-750-SLAEW (part number 103206) is a member of China Advanced Ceramic Thread Mounted Feedthroughs. The SS-750-SLAEW vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SS-750-SLAEW vacuum rotary feedthrough features a Solid shaft with Nose (threaded) mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

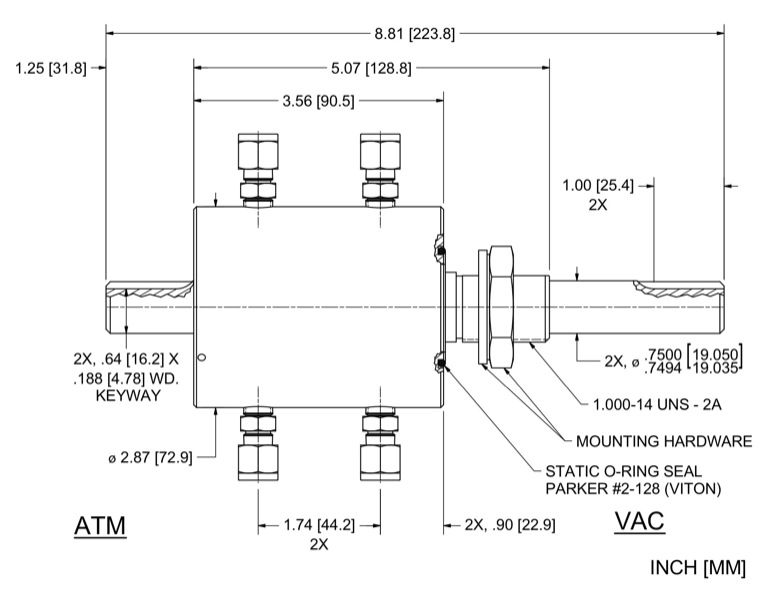

China Advanced Ceramic Part Number 103206 Dimension Specification Drawing

Feedthrough Model SS-750-SLAEW (part number 103206) dimensional specifications drawing

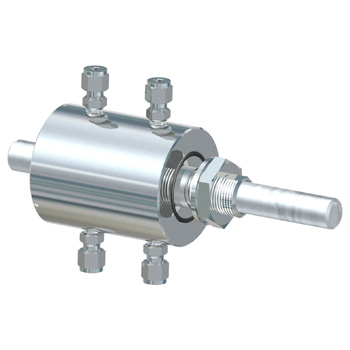

Feedthrough Model SS-750-SLAEW (part number 103206) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 103206

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Nose (threaded)
Mounting Nut and Washer Included
Features: Water-cooled

Dimensions:
Shaft (or bore) Diameter with tolerance 0.7497  in
Shaft termination 0.188w x 0.115d x 1.0L (keyway) in
Shaft extension (Vac) 2.49 in
Overall length 8.812 in
Housing overall length 5.072 in
Housing diameter 2.87  in
Body length 3.562 in
Thread diameter 1 in
Thread pitch [tps] or [mm/thd] (metric) 14 [tps]
Thread length 1.36 in
Recommended mounting bore 1.025
Fitting locations 0.901, 1.742 in
Face seal O-ring 2-128

Bearing Specifications:
Bearing type/material SSR12
Bearing Dim A 4.37 in
Bearing Dim B 2.8 in
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 671 in-lb
Starting Torque 100rpm * 4.76 in-oz
Running Torque 100rpm ** 2.82 in-oz
Starting Torque 1000rpm * 8.66 in-oz
Running Torque 1000rpm ** 4.33 in-oz
Limiting Speed [rpm] *** 9000
Notes shaft length can be modified easily
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

*** Water cooling may permit significantly higher speed. Consult your Field Engineer.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.

Ordering Information for Model SS-750-SLAEW, Part Number 103206

If you have questions about pricing and availability, need more information about China Advanced Ceramic SS-750-SLAEW rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »

Special Orders, Modifications, and Customized Solutions for Unique Applications

Model SS-750-SLAEW, Part Number 103206 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
