Feedthrough Model: SS-500-SLAEW
Part Number: 103204



Product Description

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-500-SLAEW (part number 103204) is a member of China Advanced Ceramic Thread Mounted Feedthroughs. The SS-500-SLAEW vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.

The SS-500-SLAEW vacuum rotary feedthrough features a Solid shaft with Nose (threaded) mounting. Dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. For precision measurement specifications, refer to the Spec Control Drawing.

China Advanced Ceramic Part Number 103204 Dimension Specification Drawing

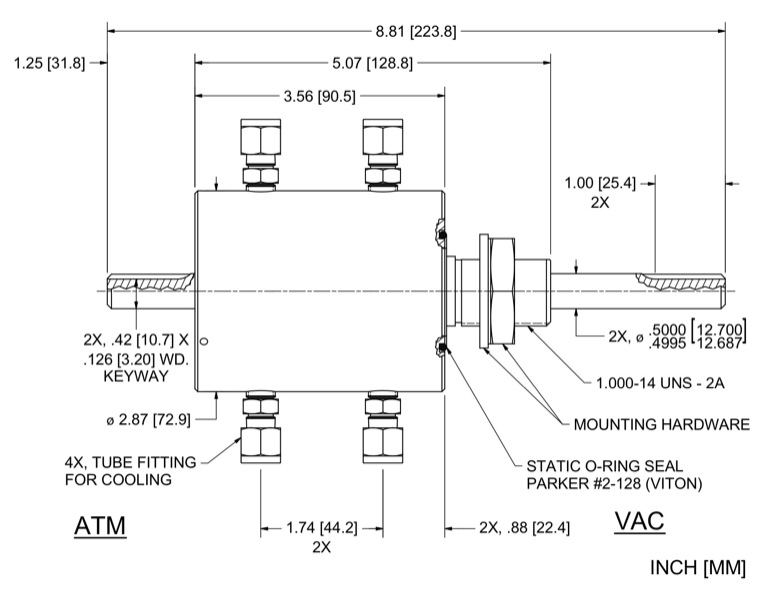

Feedthrough Model SS-500-SLAEW (part number 103204) dimensional specifications drawing

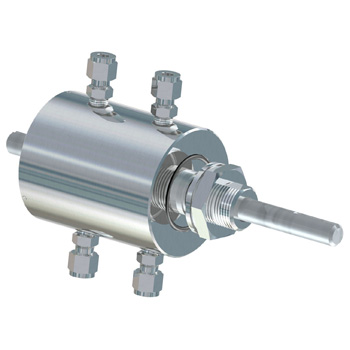

Feedthrough Model SS-500-SLAEW (part number 103204) image

Product Specifications

Specifications for China Advanced Ceramic Part Number 103204

Shaft Solid Shaft
Shaft Support: Simply Supported (vac+atm sides)
Ferrofluid Standard
Mounting Nose (threaded)
Mounting Nut and Washer Included
Features: Water-cooled

Dimensions:
Shaft (or bore) Diameter with tolerance 0.4998 (+.0002/-.0003) in
Shaft termination 0.126w x 0.78d x 1.0L (keyway) in
Shaft extension (Vac) 2.49 in
Overall length 8.812 in
Housing overall length 5.072 in
Housing diameter 2.87  in
Body length 3.562 in
Thread diameter 1 in
Thread pitch [tps] or [mm/thd] (metric) 14 [tps]
Thread length 1.36 in
Recommended mounting bore 1.025
Fitting locations 0.881, 1.742 in
Face seal O-ring 2-128

Bearing Specifications:
Bearing type/material SR8
Bearing Dim A 4.32 in
Bearing Dim B 2.94 in
Solid Shaft bearing dimensional specifications reference drawing

Performance Characteristics:
Shaft Torque Capacity 178 in-lb
Starting Torque 100rpm * 2.72 in-oz
Running Torque 100rpm ** 1.61 in-oz
Starting Torque 1000rpm * 4.94 in-oz
Running Torque 1000rpm ** 2.47 in-oz
Limiting Speed [rpm] *** 10000
Notes shaft length can be modified easily
Availability: Normally in stock.
Note:

* See the Drag Torque section of the Determining your Requirements page for the definition of starting torque

** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease.

*** Water cooling may permit significantly higher speed. Consult your Field Engineer.

General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.
For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page.
