Feedthrough Model: SS-750-SLAE
Part Number: 103193
Product Description

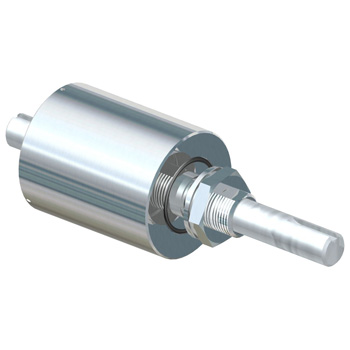

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-750-SLAE (part number 103193) is a member of China Advanced Ceramic Thread Mounted Feedthroughs. The SS-750-SLAE vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The SS-750-SLAE vacuum rotary feedthrough features a Solid shaft with Nose (threaded) mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

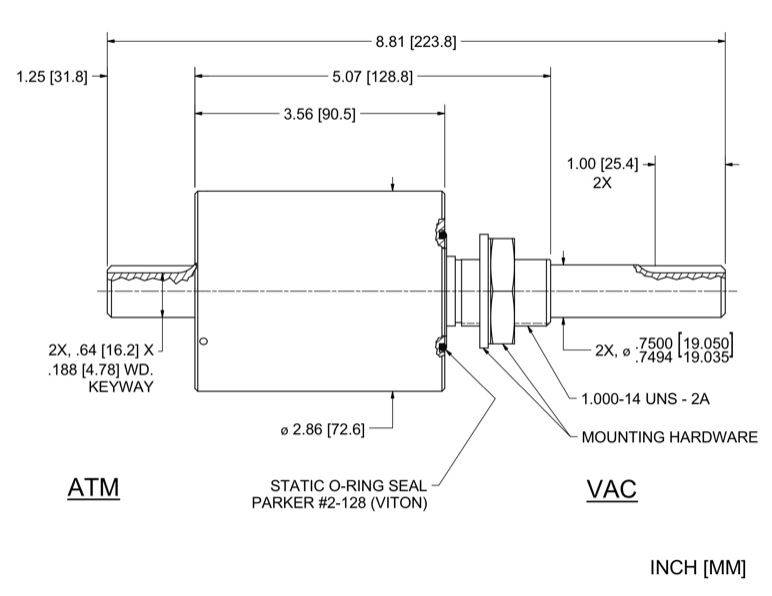

China Advanced Ceramic Part Number 103193 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 103193
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting |
Nose (threaded) Mounting Nut and Washer Included |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.7497 in |
| Shaft termination | 0.188w x 0.114d x 1.0L (keyway) in |
| Shaft extension (Vac) | 2.49 in |
| Overall length | 8.812 in |
| Housing overall length | 5.072 in |
| Housing diameter | 2.86 in |
| Body length | 3.562 in |
| Thread diameter | 1 in |
| Thread pitch [tps] or [mm/thd] (metric) | 14 [tps] |
| Thread length | 1.36 in |
| Recommended mounting bore | 1.02 (+.01/-0) in |
| Face seal O-ring | 2-128 |
Bearing Specifications: |
|
| Bearing type/material | SSR12 |
| Bearing Dim A | 4.36 in |
| Bearing Dim B | 2.8 in |
 |
|
Performance Characteristics: |
|
| Shaft Torque Capacity | 671 in-lb |
| Starting Torque 100rpm * | 3.81 in-oz |
| Running Torque 100rpm ** | 2.25 in-oz |
| Starting Torque 1000rpm * | 6.92 in-oz |
| Running Torque 1000rpm ** | 3.46 in-oz |
| Limiting Speed [rpm] | 9000 |
| Notes | shaft length can be modified easily |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
Ordering Information for Model SS-750-SLAE, Part Number 103193
If you have questions about pricing and availability, need more information about China Advanced Ceramic SS-750-SLAE rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »
Special Orders, Modifications, and Customized Solutions for Unique Applications
Model SS-750-SLAE, Part Number 103193 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
