Feedthrough Model: SS-188-SLES
Part Number: 103073
Product Description

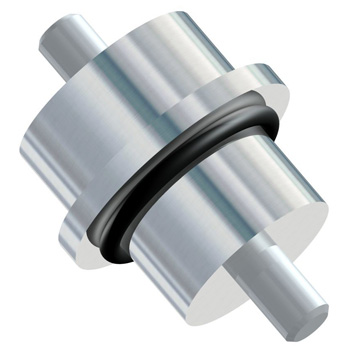

China Advanced Ceramic Ferrofluidic seal Feedthrough Model SS-188-SLES (part number 103073) is a member of China Advanced Ceramic Flange Mount Feedthroughs. The SS-188-SLES vacuum rotary feedthrough uses China Advanced Ceramic standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.
The SS-188-SLES vacuum rotary feedthrough features a Solid shaft with Mini Flange mounting. Dimensional details are specified below. For precision measurement specifications, refer to the Spec Control Drawing.

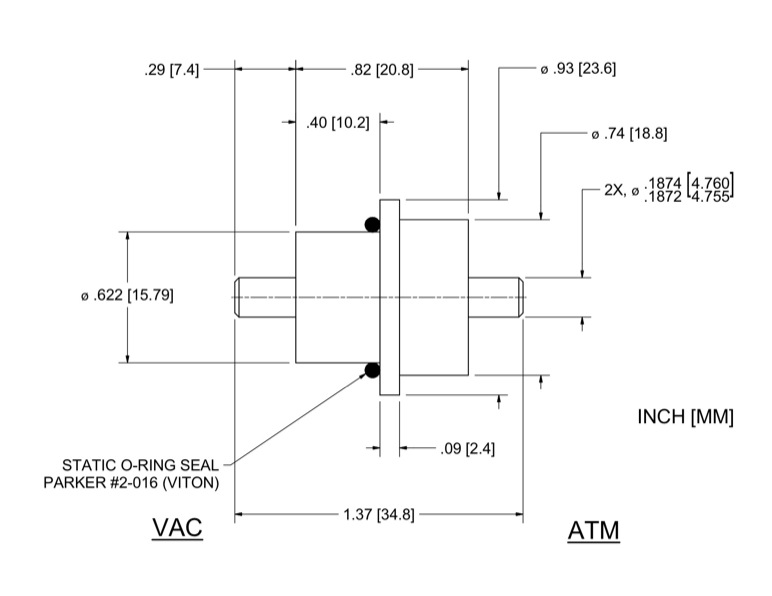

China Advanced Ceramic Part Number 103073 Dimension Specification Drawing
Product Specifications
Specifications for China Advanced Ceramic
Part Number 103073
| Shaft | Solid Shaft |
| Shaft Support: |
Simply Supported (vac+atm sides) |
| Ferrofluid | Standard |
| Mounting | Mini Flange |
Dimensions: |
|
| Shaft (or bore) Diameter with tolerance | 0.1874 in |
| Shaft extension (Vac) | 0.289 in |
| Overall length | 1.37 in |
| Housing overall length | 0.82 in |
| Housing diameter | 0.74 in |
| Body length | 0.328 in |
| Recommended mounting bore | 0.625 |
| Flange diameter | 0.93 in |
| Flange thickness | 0.093 in |
| Flange Type | Mini Flange |
| Face seal O-ring | 2-016 |
Bearing Specifications: |
|
| Bearing type/material | SR166 |
| Bearing Dim A | 0.41 in |
| Bearing Dim B | 0.59 in |
 |
|
Performance Characteristics: |
|
| Shaft Torque Capacity | 12.9 in-lb |
| Starting Torque 100rpm * | 0.2 in-oz |
| Running Torque 100rpm ** | 0.12 in-oz |
| Starting Torque 1000rpm * | 0.37 in-oz |
| Running Torque 1000rpm ** | 0.19 in-oz |
| Limiting Speed [rpm] | 10000 |
| Notes | shaft length and flange geometry can be modified easily |
| Availability: | Normally in stock. |
| Note: * See the Drag Torque section of the Determining your Requirements page for the definition of starting torque ** Values are for a feedthrough at room temperature. Under continuous rotation the unit will warm-up, and the running torque will decrease. General vacuum seal specifications can be found on China Advanced Ceramic Standard Feedthrough Common Specifications page.For an explanation of China Advanced Ceramic flange mounting terminology, consult China Advanced Ceramic Flange Mount Options page. |
|
Ordering Information for Model SS-188-SLES, Part Number 103073
If you have questions about pricing and availability, need more information about China Advanced Ceramic SS-188-SLES rotary feedthroughs, or if you have other Ferrofluidic seal requirements, you can submit your request using the form below or contact your China Advanced Ceramic representative directly »
Special Orders, Modifications, and Customized Solutions for Unique Applications
Model SS-188-SLES, Part Number 103073 is a standard model vacuum rotary feedthrough. China Advanced Ceramic can also customize a Solid shaft vacuum rotary feedthrough to match your specific application requirements. Please contact China Advanced Ceramic for more information.
